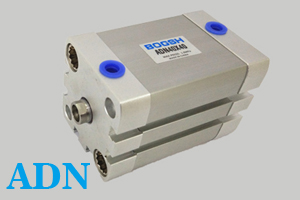

ADNGF Series Compact Cylinder

Portugues

Russian

Product Name:

ADNGF Series Compact Cylinder

No. :

ADNGF Series

Product Description

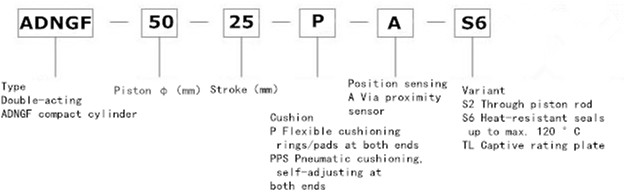

How to Order?

Features

· 1.High cycle rates possible

· 2.Ideal for OEMs: no risk of tampering

· 3.Up to 50% shorter than the standard cylinder ISO 15552 – with the same stroke.
4.1:1 interchangeable with ADN-P

Specification

Bore Size [mm]	12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
Stroke length [mm]	1 ... 500
Force [N]	51 ... 7,363
Double-acting
Position sensing
Fixed/self-adjusting Cushioning
Female thread
Male thread
