Bore(mm)

16

20

25

32

40

50

63

80

100

Action

Double acting, single rod/double rod

Fluid

Filtered compressed air

Ensured Pressure Resistance

1.5MPa

Operating

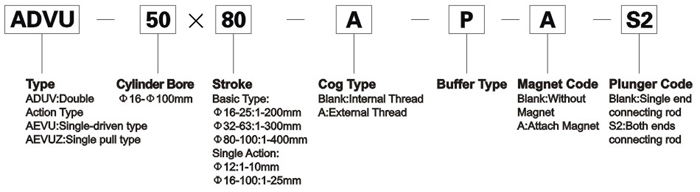

ADVU - -P-A

0.12~1.0MPa

0.1~1.0MPa

0.08~1.0MPa

0.06~1.0MPa

pressure range

ADVU - -P-A-S2

0.13~1.0MPa

0.12~1.0MPa

0.1~1.0MPa

0.8~1.0MPa

Ambient and fluid temperature

-20~80 (No freezing)

Port size

M5

G1/8"

G1/4"

Piston rod thread

Female thread

M4

M5

M6

M8

M10

M12

Male thread

M8

M10×1.25

M12×1.25

M16×1.5

M20×1.5

Cushion

Rubber bumper
