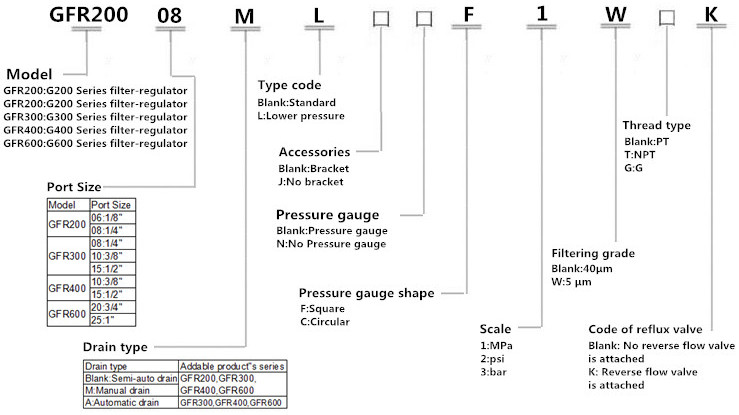

How to Order?


Features

1. Embedded square pressure gauge is used to save installation space.
    (External circular pressure gauge is also optional).
2.The pressed-in self-locking mechanism can prevent the abnormal movement
    of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4.In addition to standard type, lower pressure type is optional
    (The highest adjustable pressure is 0.4MPa)
5. Unique diversion structure spins the air flowing through to effectively sparate
    the lique from the air and reliablity filter the solid grain.
6. The Filtering grade include 5 μ m and 40μ m(Optional).
7. Three drain types are available.manual drain,semi-auto drain and automatic drain.
8. The bracket can be selected for installation.

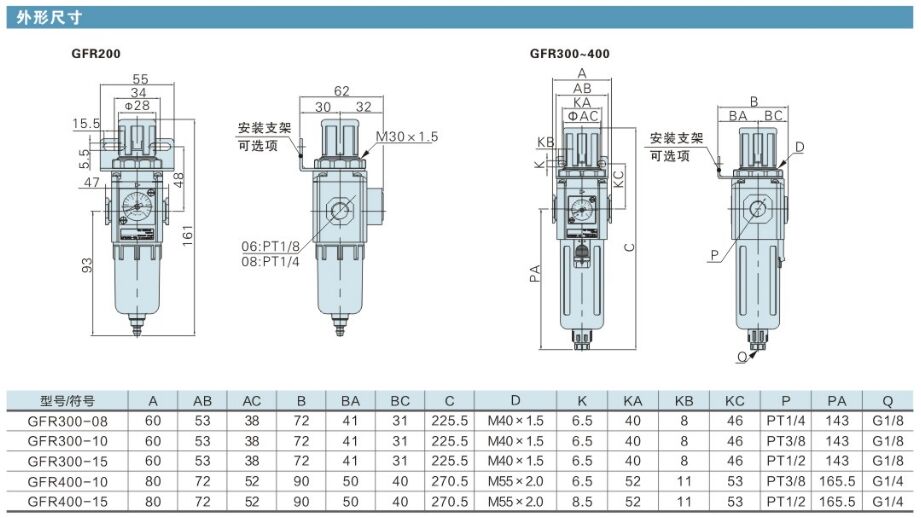

Specification
