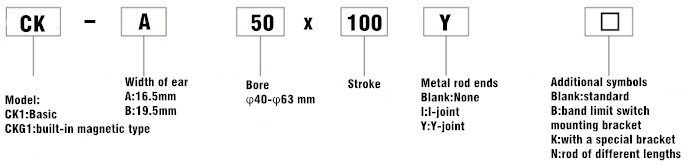

How to Order?

Specification

Bore(mm)	40	50	63
Working Medium	Air
Ensured Pressure Resistance	1.5Mpa(15kgf/cm2)
Max. Working Pressure	1.0Mpa(10kgf/cm2)
Min. Working Pressur	0.1Mpa(1kgf/cm2)
Temperature Range	-5~60℃
Piston Speed	50~500mm/s
Air Buffer	Yes
Lubrication	No Need
Thread Tolerance	6H
Stroke Tolerance	1.5
	0(mm)
Speed Controller	Yes
Mounting Type	Double Ear Ring
Port Size	G3/4"

Dimension
