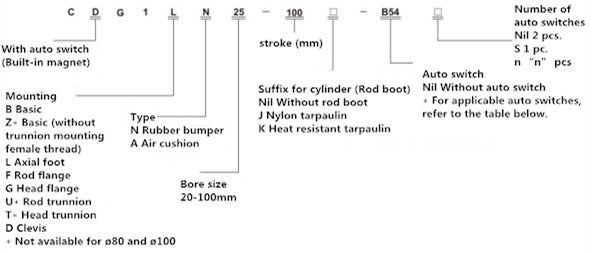

How to Order?

Specification

Bore Size(mm)	20	25	32	40	50	63	80	100
Action	Double acting, Single rod
Lubricant	Not required (Non-lube)
Fluid	Air
Proof pressure	1.5 MPa
Maximum operating pressure	1.0 MPa
Minimum operating pressure	0.05 MPa
Ambient and fluid temperature	Without auto switch: –10°C to 70°C (No freezing)
	With auto switch : –10°C to 60°C(No freezing)
Piston speed (mm/s)	50 to 1000						50 to 700
Stroke length tolerance	Up to 1000 st +1.4mm, Up to 1500 st +1.8mm
	0                                  0
Cushion	Rubber bumper, Air cushion
Mounting∗	Basic, Basic (without trunnion mounting female thread),
	Axial foot, Rod flange, Head flange, Rod trunnion,
	Head trunnion, Clevis
Port Size	1/8				1/4		3/8	1/2

∗Cylinder sizes ø80 and ø100 do not have basic (without trunnion mounting female thread), rod trunnion and head trunnion types. Foot,
flange and clevis types of cylinder sizes from ø20 to ø63 do not have trunnion mounting female thread. Operate the cylinder within the
allowable kinetic energy.

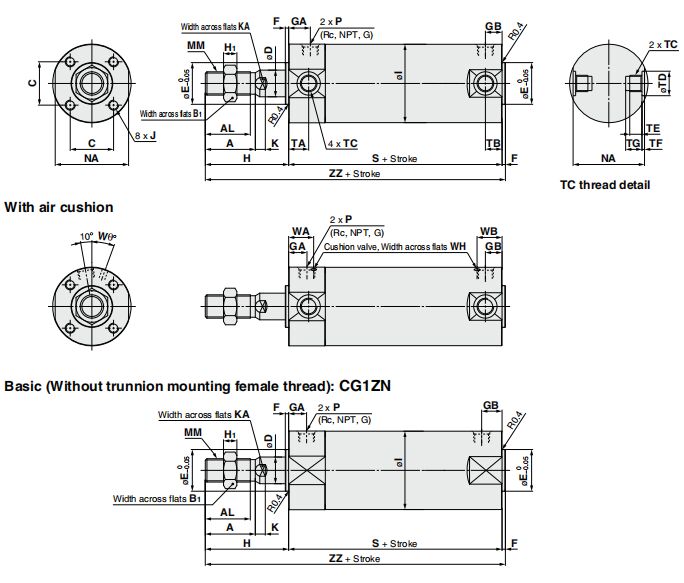

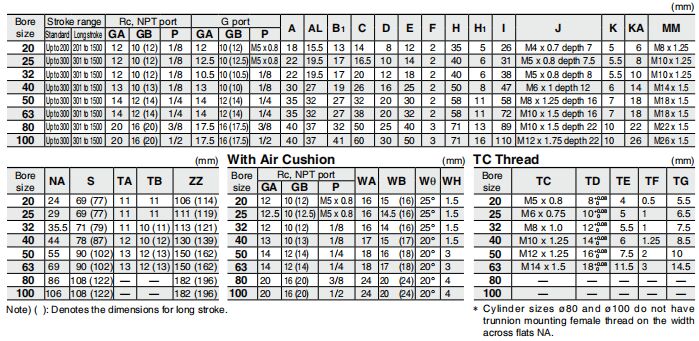

Dimension
