4A series air valve(5/2 way, 5/3 way)
Product Name:
4A series air valve(5/2 way, 5/3 way)
No. :
4A Series (5/2 way, 5/3 way)
:
:

Product Description

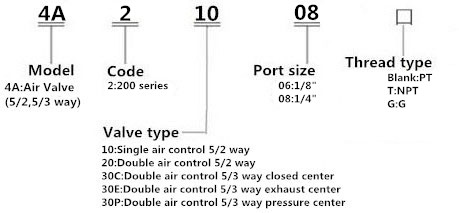

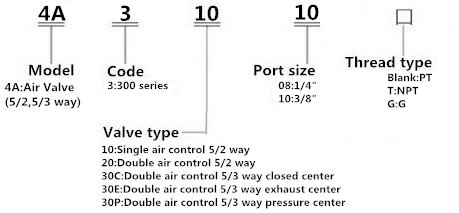

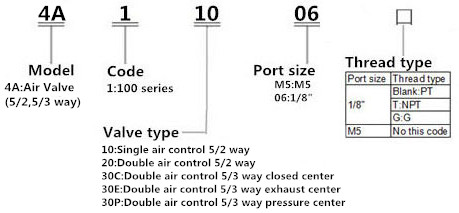

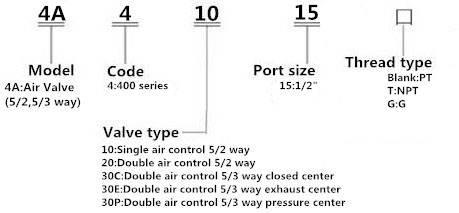

How to Order?









Features

1. Structure in sliding column mode: good tightness and sensitive reaction.
2. Double air control valves have memory function.
3. Internal hole adopts special processing technology which has little attrition friction,
   low start pressure and long service life.
4. No need to add oil for lubrication.
5. Multi-mounting helps to install and apply.
6. Integrate with the manifold to save installation space.

Specification

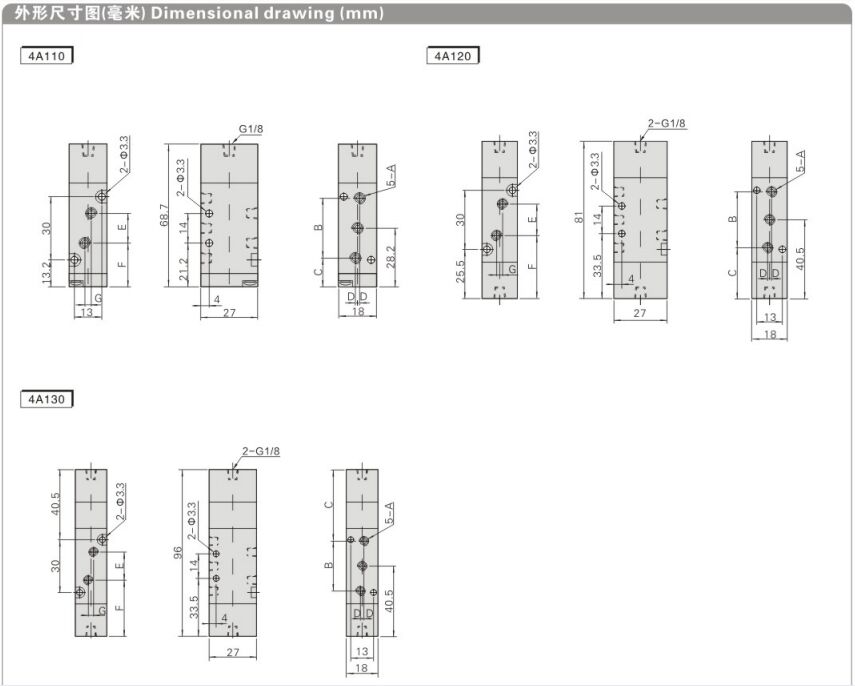

4A100

Model   4A130C-M5   4A130C-06
4A110-M5 4A130E-M5 4A110-06 4A130E-06
4A120-M5 4A130P-M5 4A120-06 4A130P-06
Fluid Air(to be filtered by 40μ m filter element)
Acting Exterior control
Port Size* In=Out=M5 In=Out=1/8"
Orifice size 5.5mm² 5.0mm² 12.0mm² 9.0mm²
(Cv=0.31) (Cv=0.28) (Cv=0.67) (Cv=0.50)
Valve type 5 ports 2 position 5 ports 3 position 5 ports 2 position 5 ports 3 position
Operating pressure 0.15-0.8MPa(21~114psi)
Proof pressure 1.5MPa(215psi)
Temperature℃ -20~70
Material of body Aluminum alloy
Lubrication** Not required
Max. frequency*** 5 cycle/sec 3 cycle/sec 5 cycle/sec 3 cycle/sec
Weight (g) 4A110-M5:85 165 4A110-06:85 165
4A120-M5:140 4A120-06:140


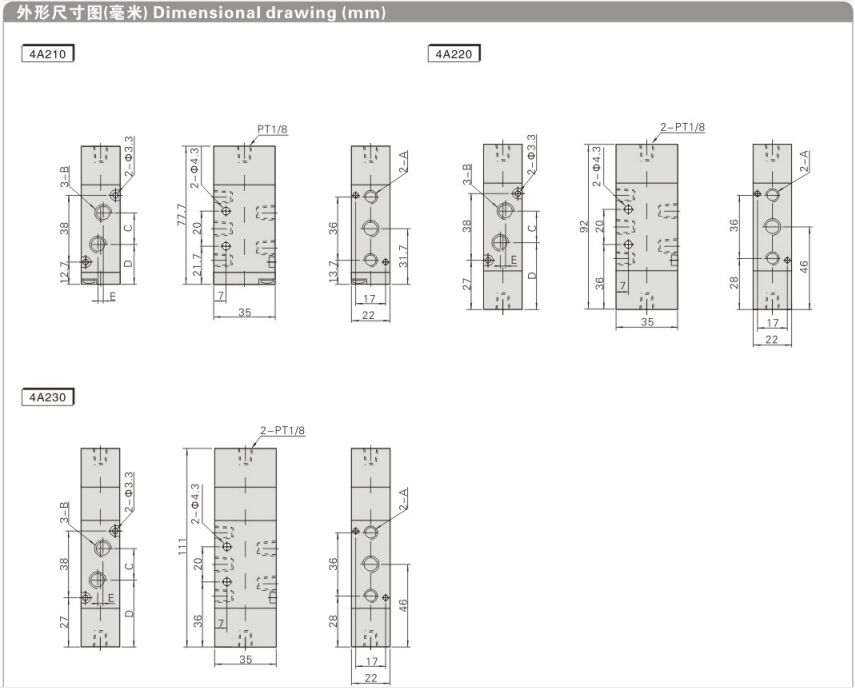

4A200

Model   4A230C-06   4A230C-08
4A210-06 4A230E-06 4A210-08 4A230E-08
4A220-06 4A230P-06 4A220-08 4A230P-08
Fluid Air(to be filtered by 40μ m filter element)
Acting Exterior control
Port Size* In=Out=Exhaust=1/8" In=Out=1/4"  Exhaust=1/8"
Orifice size 14.0mm² 12.0mm² 16.0mm² 12.0mm²
(Cv=0.78) (Cv=0.67) (Cv=0.89) (Cv=0.67)
Valve type 5 ports 2 position 5 ports 3 position 5 ports 2 position 5 ports 3 position
Operating pressure 0.15-0.8MPa(21~114psi)
Proof pressure 1.5MPa(215psi)
Temperature℃ -20~70
Material of body Aluminum alloy
Lubrication** Not required
Max. frequency*** 5 cycle/sec 3 cycle/sec 5 cycle/sec 3 cycle/sec
Weight (g) 4A210-06:185 365 4A210-08:185 365
4A220-06:285 4A220-08:285


4A300

Model   4A330C-08   4A330C-10
4A310-08 4A330E-08 4A310-10 4A330E-10
4A320-08 4A330P-08 4A320-10 4A330P-10
Fluid Air(to be filtered by 40μ m filter element)
Acting Exterior control
Port Size* In=Out=Exhaust=1/4" In=Out=3/8"  Exhaust=1/4"
Orifice size 25.0mm² 18.0mm² 30.0mm² 18.0mm²
(Cv=1.40) (Cv=1.00) (Cv=1.68) (Cv=1.00)
Valve type 5 ports 2 position 5 ports 3 position 5 ports 2 position 5 ports 3 position
Operating pressure 0.15-0.8MPa(21~114psi)
Proof pressure 1.5MPa(215psi)
Temperature℃ -20~70
Material of body Aluminum alloy
Lubrication** Not required
Max. frequency*** 4 cycle/sec 3 cycle/sec 4 cycle/sec 3 cycle/sec
Weight (g) 4A310-08:275 505 4A310-10:275 505
4A320-08:365 4A320-10:365


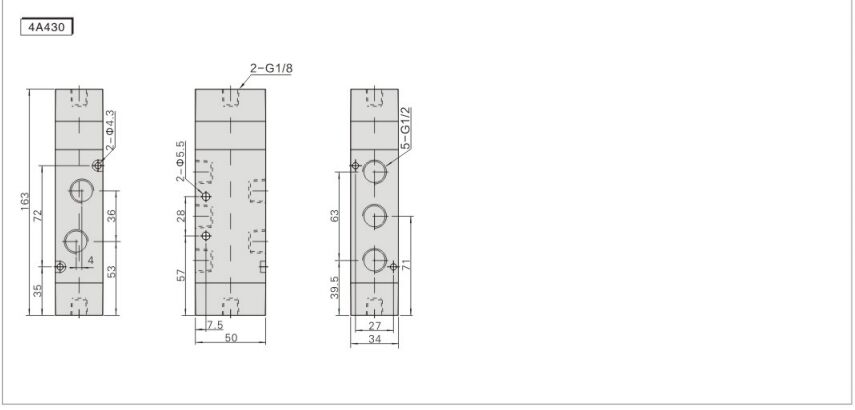

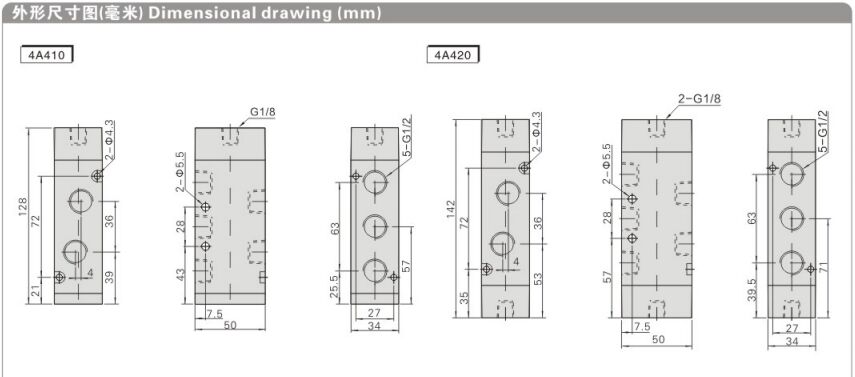

4A400

Model 4A410-15 4A420-15 4A430C-15 4A430E-15 4A430P-15
Fluid Air(to be filtered by 40μ m filter element)
Acting Exterior control
Port Size* In=Out=Exhaust=1/2"
Orifice size 50.0mm²(Cv=2.79) 30.0mm²(Cv=1.68)
Valve type 5 ports 2 position 5 ports 3 position
Operating pressure 0.15-0.8MPa(21~114psi)
Proof pressure 1.5MPa(215psi)
Temperature℃ -20~70
Material of body Aluminum alloy
Lubrication** Not required
Max. frequency*** 3 cycle/sec
Weight (g) 555 685 735

*PT thread,NPT thread and G thread are available
**Once lubricated air is used,continue with same medium to optimise valve life span.
Lubricants like ISO VG32 or equivalent are recommended
***The maximum actuation frequency is in the no-load state
