Product Name:
AR/BR series regulator
No. :
AR/BR series
Product Description

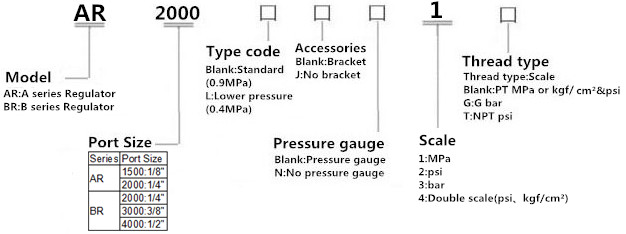

How to Order?
Features
1.The structure is delicate and compact, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure
caused by external interfere.
3.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa)
Specification
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure range | 0.05~0.9Mpa(7-130Psi) | ||||
| Max. pressure | 1.0Mpa(145Psi) | ||||
| Proof pressure | 1.5Mpa(215Psi) | ||||
| Temperature range | -20~70℃ | ||||
| Weight | 200g | 230g | |||
