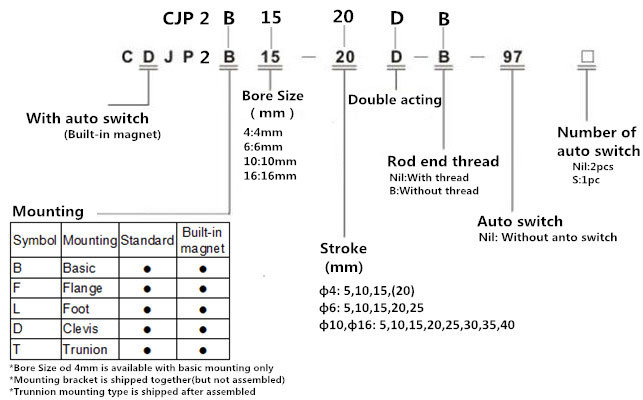

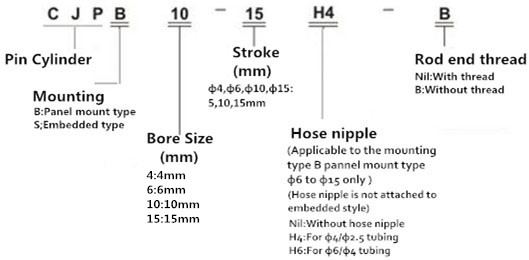

How to Order?

CJP

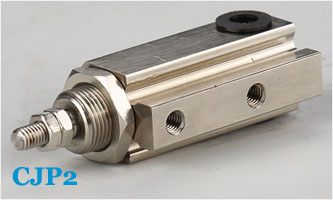

CJP2

Features

1. Small and Light

Specification

CJP

Bore(mm)	4	6	10	15
Action	Single acting,Spring return
Proof pressure	1 Mpa
Max.pressure	0.7Mpa
Min.pressure	0.3Mpa	0.2Mpa	0.15Mpa
Ambient and fluid	-10 to 70℃ (No freezing)
Temperature
Lubrication	Not required(Non-lube)
Stroke length	+1.0
tolerance	0
Rod end style	With thread/without thread
Piston speed	50 to 500mm/s*
Cushion	None

CJP2

Bore(mm)	4	6	10	16
Action	Double acting,Single rod
Proof pressure	1 Mpa
Max.pressure	0.7Mpa
Min.pressure	0.15Mpa	0.12Mpa	0.06Mpa
Ambient and fluid	Without auto switch:-10 to 70℃
Temperature	With auto switch:-10 to 60℃ (No freezing)
Lubrication	NO required(Non-lube)
Stroke length	+1.0
tolerance	0
Rod end style	With thread/without thread
Piston speed	10 to 500mm/s*
Cushion	Rubber bumper
Mounting*	Basic,Flange,Foot,Clevis,Trunnion

* Bore size of 4mm is available with basic mounting only. The piston speed for a bore size of 4mm is 50 to 500 mm/s

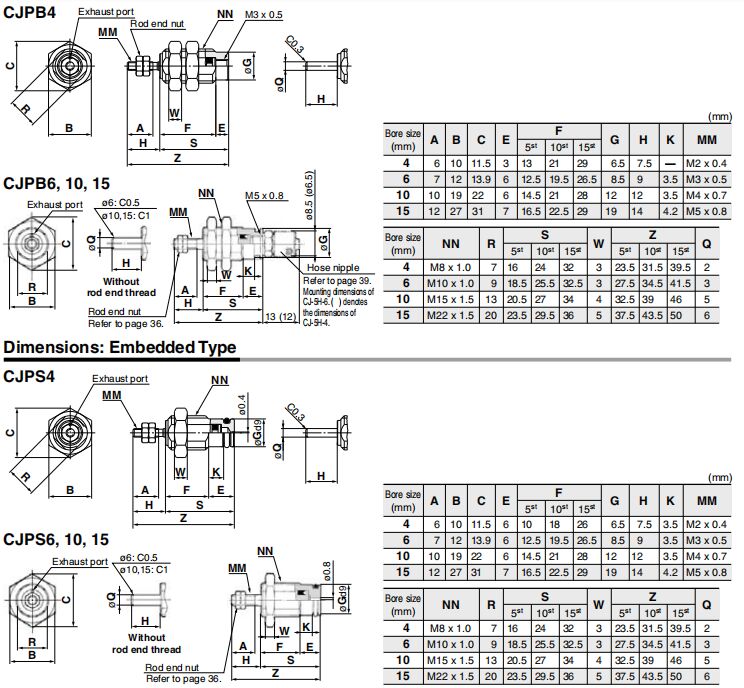

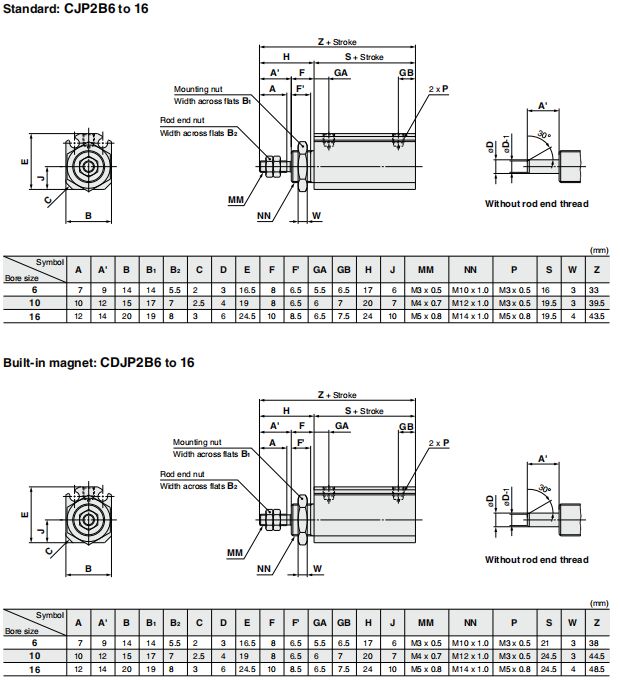

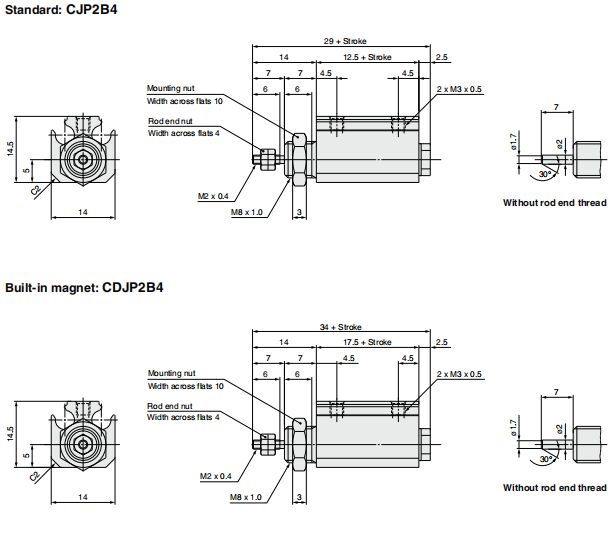

Dimension
