Product Name:
CM2/MF Series Mini Cylinder (Stainless Steel)
No. :
CM2/MF Series
Product Description

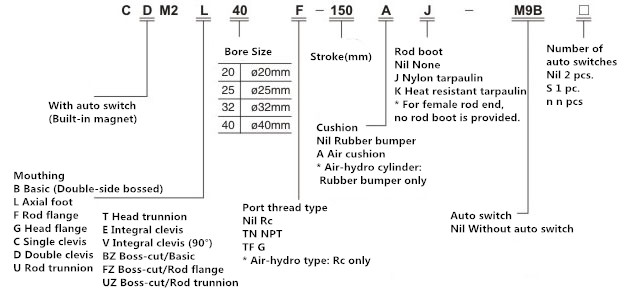

How to Order?
Specification
| Bore size (mm) | 20 | 25 | 32 | 40 |
| Action | Double acting, Single rod | |||
| Fluid | Air | |||
| Proof pressure | 1.5 MPa | |||
| Maximum operating pressure | 1.0 MPa | |||
| Minimum operating pressure | 0.05 MPa | |||
| Ambient and fluid temperature | Without auto switch: −10°C to 70°C(No freezing) | |||
| With auto switch: −10°C to 60°C(No freezing) | ||||
| Lubrication | Not required (Non-lube) | |||
| Stroke length tolerance(mm) | +1.4 0 |
|||
| Piston Speed | 50 to 750 mm/s | |||
| Cushion | Rubber bumper, Air cushion | |||
| Port Size | 1/8 | 1/4 | ||

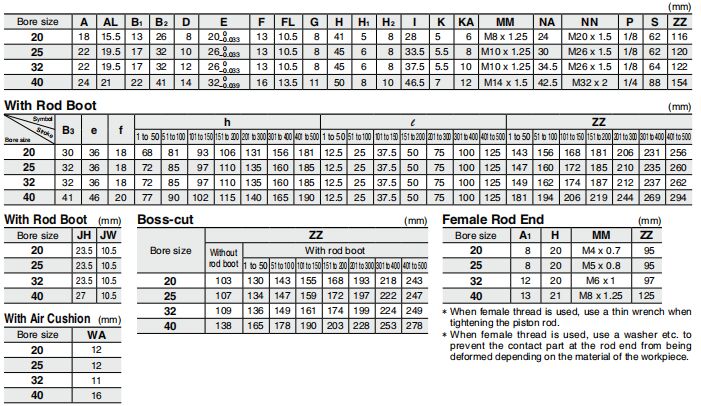

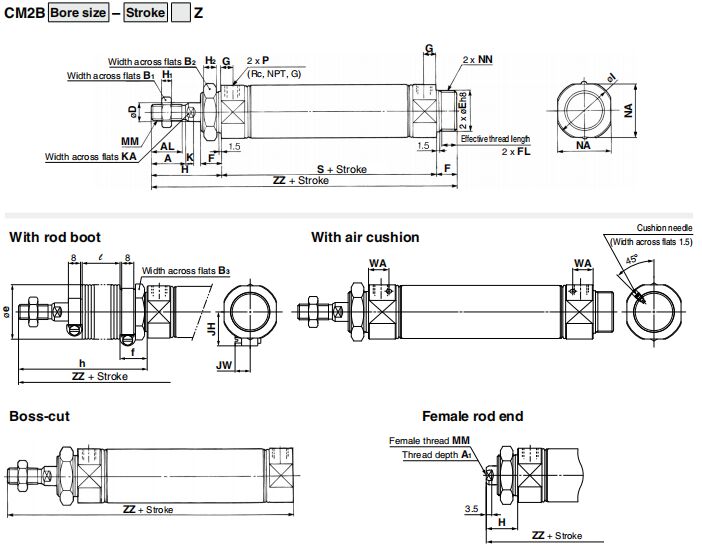

Dimension
