Product Name:

CJ2 Series Mini Cylinder (Stainless Steel)

No. :

CJ2 Series (Stainless Steel)

Product Description

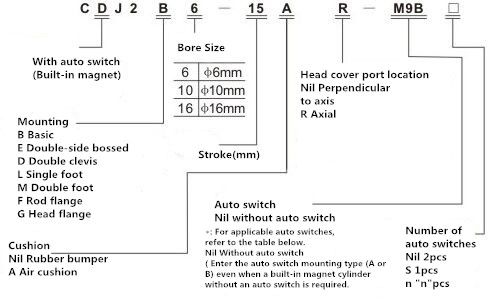

How to Order?

Specification

Bore Size(mm)		6	10	16
Action		Double acting, Single rod
Fluid		Air
Proof pressure		1 MPa
Maximum operating pressure		0.7 MPa
Minimum operating pressure	Rubber bumper	0.12 MPa	0.06 MPa
	Air cushion	-	0.1 MPa
Ambient and fluid temperature		Without auto switch: –10°C to 70°C(No freezing)
		With auto switch: –10°C to 60°C(No freezing)
Cushion		Rubber bumper	Rubber bumper/Air cushion
Lubrication		Not required (Non-lube)
Piston speed	Rubber bumper	50 to 750 mm/s
	Air cushion	-	50 to 1000 mm/s
Allowable kinetic energy	Rubber bumper	0.012J	0.035J	0.090J
	Air cushion	-	0.07 J	0.18 J
	(Effective cushion length)		(9.4 mm)	(9.4 mm)
Stroke length tolerance		+1.0 0

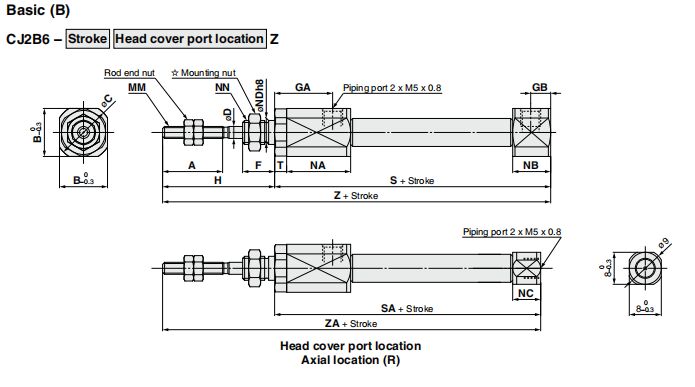

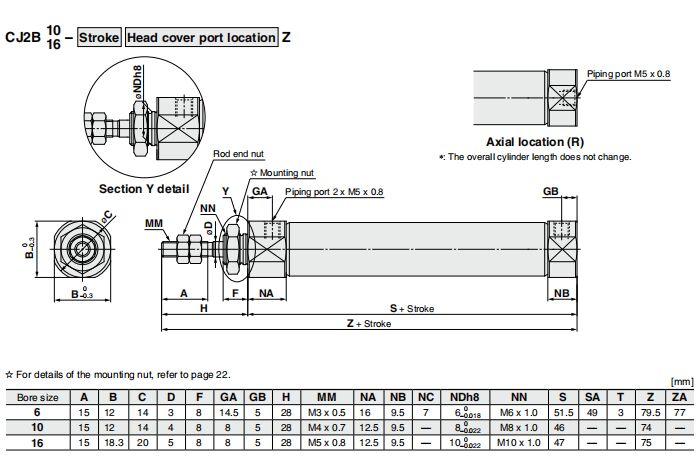

Dimension
