C85/MI series Mini Cylinder (Stainless Steel) (ISO 6432)

Portugues

Russian

Product Name:

C85/MI series Mini Cylinder (Stainless Steel) (ISO 6432)

No. :

C85/MI Series(Stainless Steel) (ISO 6432)

Product Description

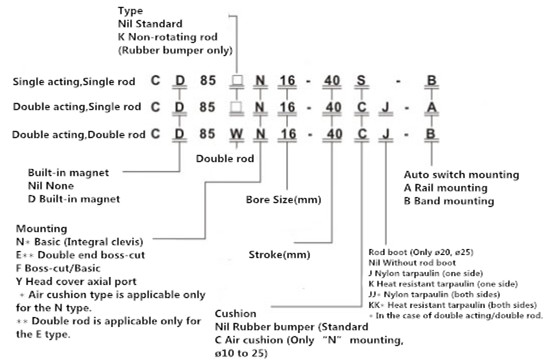

How to Order?

Specification

Bore Size(mm)		8	10	12	16	20	25
Action		Double acting, Single/Double rod
Fluid		Air
Proof Pressure		1.5 MPa
Max. operating pressure		1.0 MPa
Min. operating pressure		0.1 MPa	0.08 MPa		0.05 MPa
Ambient and fluid temperature		–20 to 80°C (Built-in magnet: –10 to 60°C)
Cushion		Rubber bumper (Non-rotating: Rubber bumper only),
		Air cushion (Except ø8)
Lubrication		Not required. Use turbine oil Class 1 ISO VG32, if lubricated.
Piston speed		50 to 1500 mm/s
Allowable kinetic energy	Rubber bumper	0.02J	0.03J	0.04J	0.09J	0.27J	0.4J
	Air cushion	-	0.17J	0.19J	0.4J	0.66J	0.97J
Stroke length tolerance(mm)		+ 1.0 0				+ 1.4 0
Port Size		M5x0.8				G 1/8

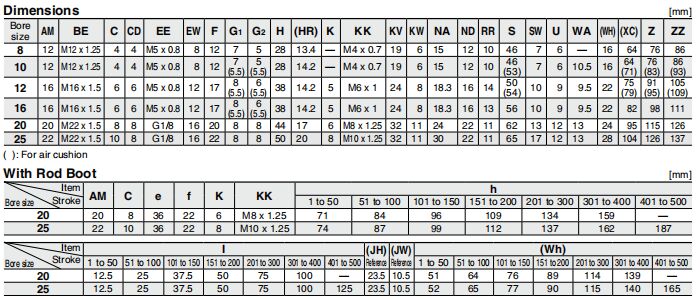

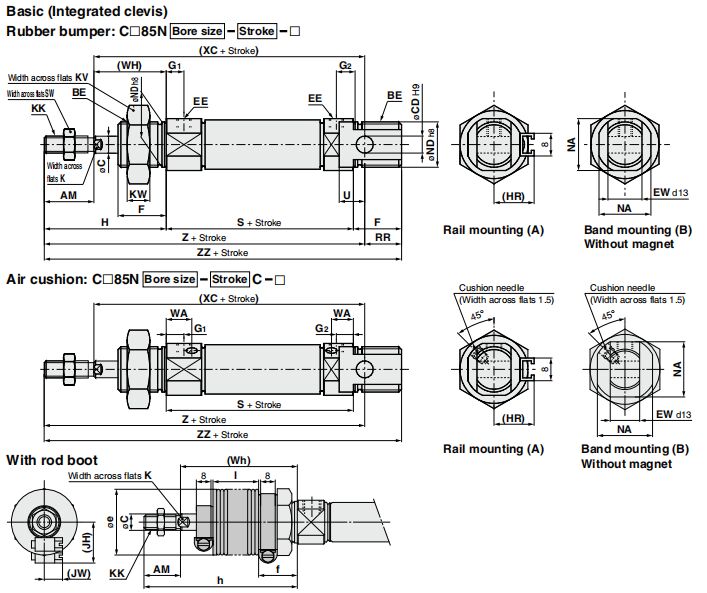

Dimension
