Product Name:

MGJ Series Miniature Guide Rod Cylinder

No. :

MGJ Series

Product Description

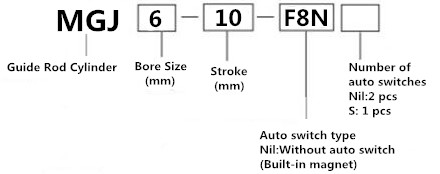

How to Order?

Features

1. Non-rotating accuracy:±0.1˚

2. Mounting from 2 directions

3. Two auto switches can be mounted even for 5 mm strokes

4. Integral wiring/piping to one direction

Specification

Bore size (mm)	6	10
Action	Double acting
Fluid	Air
Proof pressure	1.05 MPa
Maximum operating pressure	0.7 MPa
Minimum operating pressure	0.15 MPa
Ambient and fluid temperature	–10 to 60°C (No freezing)
Cushion	Rubber bumper at both ends
Lubrication	Non-lube
Piston speed	50 to 500 mm/s*
Stroke length tolerance	+1.0 mm
	0
Port size	M3 x 0.5
Guide size	ø5	ø6

*Within allowable kinetic energy use only

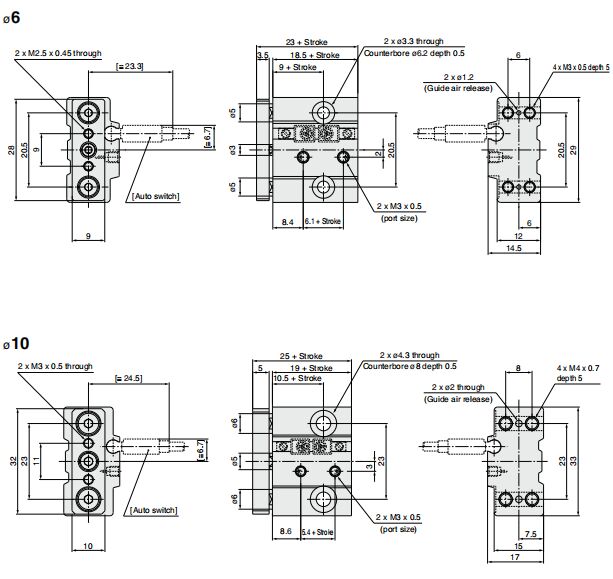

Dimension
