Product Name:

GFC Series (F.R.L Combination)

No. :

GFC

Product Description

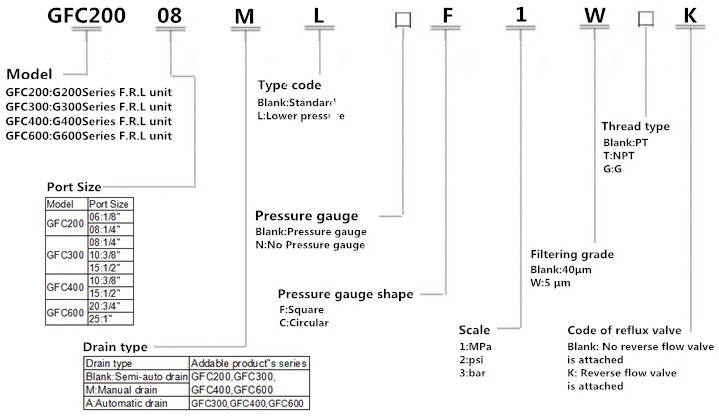

How to Order?

Features

1. Quick and reliable mounting clamps males it convenient to install and use.
2. The performance of pressure adjustment is reliable with high precision.
3.The efficiency of eliminating moisture and solid grain is high.
4. Three drain types are available.manual drain,semi-auto drain and automatic drain.

Specification

Model		GFC200-06	GFC200-08	GFC300-08	GFC300-10	GFC300-15	GFC400-10	GFC400-15	GFC600-20	GFC600-25
Fluid		Air
Port size		1/8"	1/4"		3/8"	1/2"	3/8"	1/2"	3/4"	1"
Filtering grade		40 μ m or 5 μ m
Pressure range		Semi~auto and automatic drain:0.15~0.9Mpa(20-130Psi); Manual drain:0.05~0.9Mpa(7-130Psi)
Max. pressure		1.0Mpa(145Psi)
Proof pressure		1.5Mpa(215Psi)
Temperature range		-5~70℃
Capacity of drain bowl		10CC		40CC			80CC		230CC
Capacity od oil bowl		25CC		75CC			160CC		380CC
Weight		430g		980g			1950g		4320g
Constitute	Filter-Regulator	GFR200-06	GFR200-08	GFR300-08	GFR300-10	GFR300-15	GFR400-10	GFR400-15	GFR600-20	GFR600-25
	Lubricator	GL200-06	GL200-08	GL300-08	GL300-10	GL300-15	GL400-10	GL400-15	GL600-20	GL600-25

*PT thread,NPT thread and G thread are available
