F.R.L Combination AC Series (F.R.L Combination)
Product Name:
AC Series (F.R.L Combination)
No. :
AC Series
Product Description

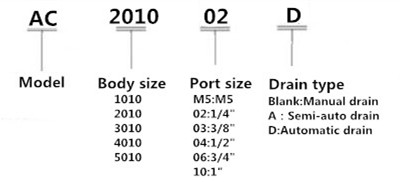

How to Order?
Specification
| Model | AC Series |
| Proof pressure | 1.5MPa(15.3kgf/cm²) |
| Max. operating pressure | 1.0MPa(10.2kgf/cm²) |
| Ambient and fluid temperature | 5~60℃ |
| Filtration rating | 5μm |
| Recommended lubricant | Class 1turbine oil(ISOVG32) |
| Bowl material | Polycarbonate |
| Bowl guard | AC1010~2010(No), AC3010~5010(Yes) |
| Set pressure range | AC1010:0.05~0.7MPa(0.51~7.1kgf/cm²), AC2010~5010:0.05~0.85MPa(0.51~8.7kgf/cm²) |
*2,10,20,40,70,100 μm are available
