Product Name:
FRC Series Service unit
No. :
FRC Series
Product Description

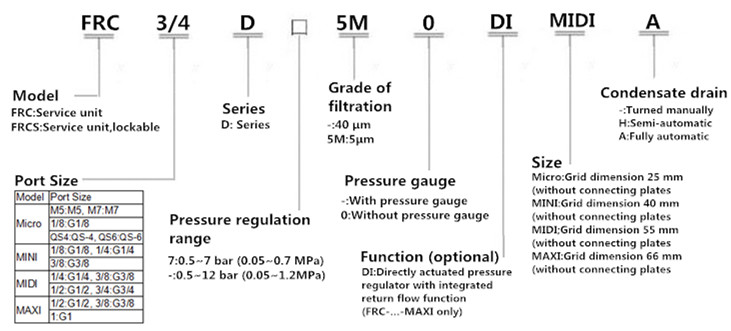

How to Order?
Specification
| Model | Micro | MINI | MIDI | MAXI |
| Port size | M5,M7,G1/8,QS-4,QS-6 | G1/8,G1/4,G3/8 | G1/4,G3/8,G1/2,G3/4, | G1/2,G3/4,G1 |
| Design | Filter regulator with/without pressure gauge,Proportional standard mist lubricator | |||
| Type of mounting | Via accessories, In-line installation | |||
| Assembly position | Vertical ±5° | |||
| Grade of filtration (μm) | 5 | 5 OR 40 | ||
| Bowl guard | - | Metal bowl guard | ||
| Condensate drain | Manual rotary | |||
| Semi-automatic | Fully automatic | |||
| Regulator lock | Rotary knob with detent | |||
| - | Rotary knob with integrated lock | |||
| Pressure regulation range (bar) | 0.5~7(0.05~0.7MPa) | 0.5~7(0.05~0.7MPa) | ||
| 0.5~12(0.05~1.2MPa) | ||||
| Max. hysteresis (bar) | 0.3 (0.03 MPa) | 0.2 (0.02 MPa) | 0.4 (0.04 MPa) | |
| Pressure indication | Via pressure gauge | |||
| M5 prepared | G1/8 prepared | G1/4 prepared | G1/4 prepared | |
| Max. condensate volume (cm3) | 3 | 22 | 43 | 80 |
