Product Name:

AFC/BFC Series (F.R.L Combination)

No. :

AFC/BFC Series

Product Description

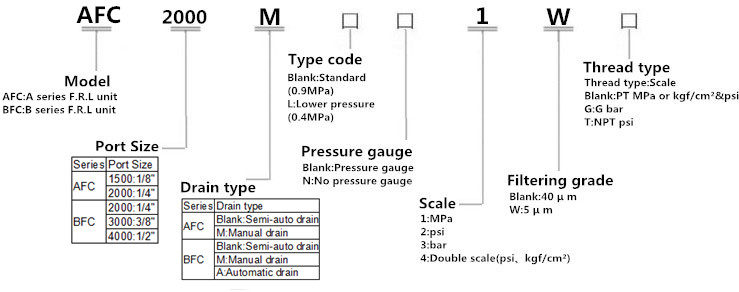

How to Order?

Features

1.The structure is delicate and compact, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set
pressure caused by external interfere.
3.The pressure loss is low and the efficiency of water separating is high.
4.The quantity of oil dripping can be directly observed through transparent check dome.
5.In addition to standard type, lower pressure type is optional
(The highest adjustable pressure is 0.4MPa).

Specification

Model		AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Fluid		Air
Port size		1/8"	1/4"	1/4"	3/8"	1/2"
Filtering grade		40 μ m or 5 μ m
Pressure range		Semi~auto and automatic drain:0.15~0.9Mpa(20-130Psi)
		Manual drain:0.05~0.9Mpa(7-130Psi)
Max. pressure		1.0Mpa(145Psi)
Proof pressure		1.5Mpa(215Psi)
Temperature range		-5~70℃
Capacity of drain bowl		15CC		60CC
Capacity od oil bowl		25CC		90CC
Recommended lubricant		ISO VG 32 or equivalent
Weight		500g		700g
Constitute	Filter-Regulator	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

*PT thread,NPT thread and G thread are available
