Product Name:

AC/BC Series (F.R.L Combination)

No. :

AC/BC Series

Product Description

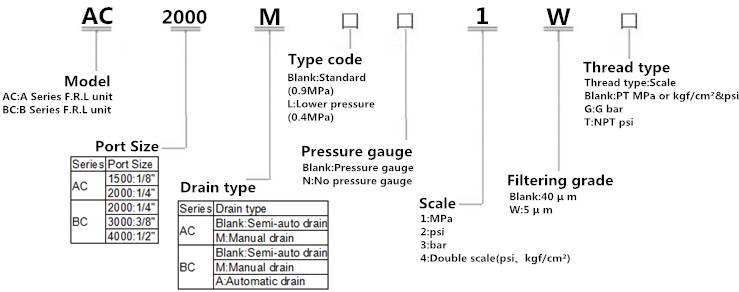

How to Order?

Features

1.The structure is delicate and compact, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure
caused by external interfere.
3.The pressure loss is low and the efficiency of water separating is high.
4.The quantity of oil dripping can be directly observed through transparent check-dome.
5.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

Specification

Model		AC1500	AC2000	BC2000	BC3000	BC4000
Fluid		Air
Port size		1/8"	1/4"	1/4"	3/8"	1/2"
Filtering grade		40 μ m or 5 μ m
Pressure range		Semi~auto and automatic drain:0.15~0.9Mpa(20-130Psi)
		Manual drain:0.05~0.9Mpa(7-130Psi)
Max. pressure		1.0Mpa(145Psi)
Proof pressure		1.5Mpa(215Psi)
Temperature range		-5~70℃
Capacity of drain bowl		15CC		60CC
Capacity od oil bowl		25CC		90CC
Recommended		ISO VG 32 or equivalent
Weight		700g		900g
Constitute	Filter	AF1500	AF2000	BF2000	BF3000	BF4000
	Regulator	AR1500	AR2000	BR2000	BR3000	BR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

*PT thread,NPT thread and G thread are available
