Product Name:

GL series Lubricator

No. :

GL series

Product Description

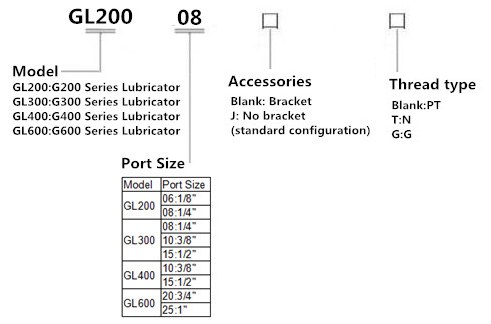

How to Order?

Features

1. The structure of oil dripping adopts gap seal type. which makes the adjustment of oil supply more reliable.
2. Oil feed ring can only make one full turn. the quantity of oil supply basically takes on linear distribution.
the quantity of oil supply can be generally calculated according to the position of graduation ring.
3. Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal.
4. Filling of oil while the lubricator is under pressure is made possible, and the oil bowl is large.
5. The bracket can be selected or installation.

Specification

Model	GL200-06	GL200-08	GL300-08	GL300-10	GL300-15	GL400-10	GL400-15	GL600-20	GL600-25
Fluid	Air
Port size	1/8"	1/4"		3/8"	1/2"	3/8"	1/2"	3/4"	1"
Pressure range	0.05~0.9Mpa(7-130Psi)
Proof pressure	1.5Mpa(215Psi)
Temperature range	-5~70℃
Capacity of drain bowl	25CC		75CC			160CC		380CC
Weight	130g		360g			670g		1300g

*PT thread,NPT thread and G thread are available
