Product Name:
AW series Filter&Regulator
No. :
AW series
Product Description

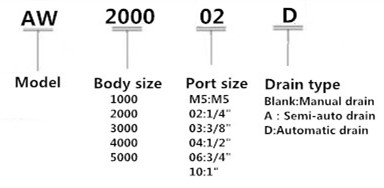

How to Order?
Specification
| Model | AW Series |
| Proof pressure | 1.5MPa(15.3kgf/cm²) |
| Max. operating pressure | 1.0MPa(10.2kgf/cm²) |
| Ambient and fluid temperature | 5~60℃ |
| Filtration rating | 5μm |
| Bowl material | Polycarbonate |
| Bowl guard | AW1000~2000(No), AW3000~5000(Yes) |
| Set pressure range | AW1000:0.05~0.7MPa(0.51~7.1kgf/cm²), AW2000~5000:0.05~0.85MPa(0.51~8.7kgf/cm²) |
*2,10,20,40,70,100 μm are available
