Yueqing BOGSH Pneumatic Co.,Ltd
AFR/BFR series Filter&Regulator
Product Name:
AFR/BFR series Filter&Regulator
No. :
AFR/BFR series
:
:

Product Description

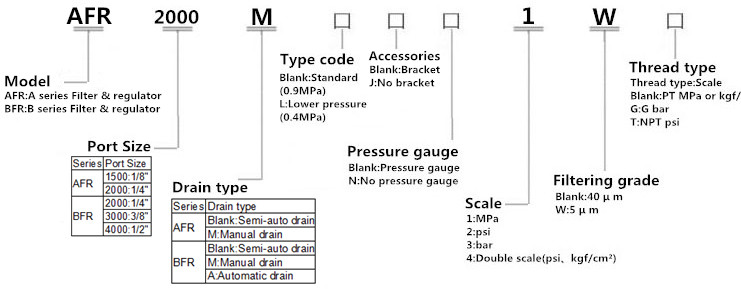

How to Order?



Features

1.The structure is delicate and compact, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure
   caused by external interfere.
3.The pressure loss is low and the efficiency of water separating is high;
4.In addition to standard type, lower pressure type is optional(The highest adjustable

Specification

Model AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Fluid Air
Port size 1/8" 1/4" 1/4" 3/8" 1/2"
Filtering grade 40 μ m or 5 μ m
Pressure range Semi~auto and automatic drain:0.15~0.9Mpa(20-130Psi)
Manual drain:0.05~0.9Mpa(7-130Psi)
Max. pressure 1.0Mpa(145Psi)
Proof pressure 1.5Mpa(215Psi)
Temperature range -5~70
Capacity of drain bowl 15CC 60CC
Weight 260g 400g
*PT thread,NPT thread and G thread are available
