Product Name:
AR series regulator
No. :
AR series
Product Description
How to Order?

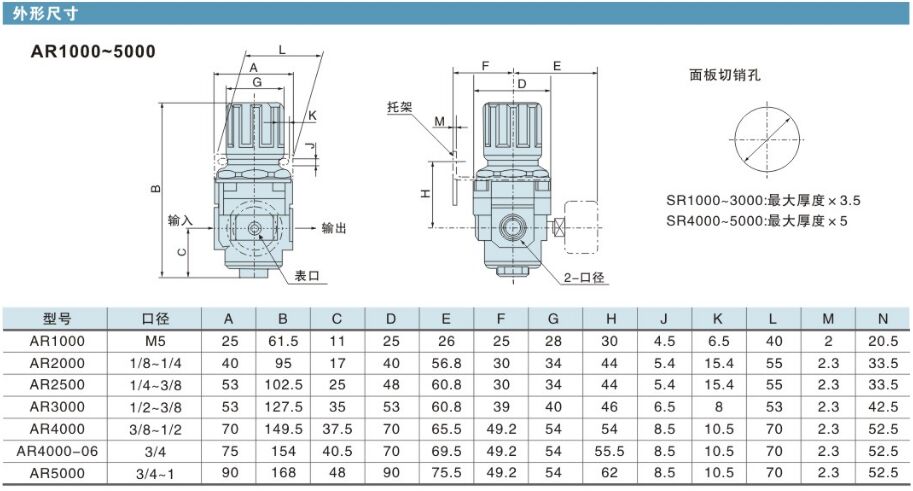

Specification
| Model | AR Series |
| Proof pressure | 1.5MPa(15.3kgf/cm²) |
| Max. operating pressure | 1.0MPa(10.2kgf/cm²) |
| Ambient and fluid temperature | 5~60℃ |
| Set pressure range | AR1000:0.05~0.7MPa(0.51~7.1kgf/cm²), AR2000~5000:0.05~0.85MPa(0.51~8.7kgf/cm²) |
* AR2000~5000 pressure range 0.02~0.2MPa(kgf/cm²) is available
