Product Name:
LF series Filter
No. :
LF series
Product Description

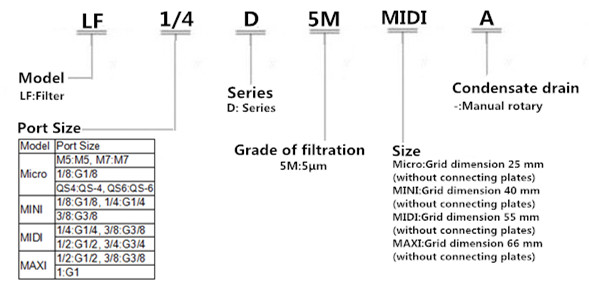

How to Order?
Specification
| Model | Micro | MINI | MIDI | MAXI |
| Port size | M5,M7,G1/8,QS-4,QS-6 | G1/8,G1/4,G3/8 | G1/4,G3/8,G1/2,G3/4, | G1/2,G3/4,G1 |
| Design | Sintered filter with centrifugal separator | |||
| Type of mounting | Via accessories, In-line installation | |||
| Assembly position | Vertical ±5° | |||
| Grade of filtration (μm) | 5 | 5 OR 40 | ||
| Bowl guard | - | Metal bowl guard | ||
| Condensate drain | Manual rotary | |||
| Semi-automatic | Fully automatic | |||
| Max. condensate volume (cm3) | 3 | 22 | 43 | 80 |
