GF series Filter

Product Name:

GF series Filter

No. :

GF series

Product Description

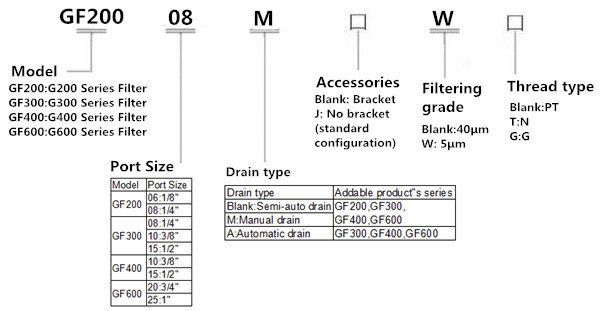

How to Order?

Features

1.Unique diversion structure spins the air flowing through to dffectively separate the lique from
the air and reliably filter the solid grain.
2. It has low pressure loss, high efficiency in separating water and large drain bowl capacity.
3. Filtering grade include 5 μ m and 40μ m(Optional).
4. Three drain types are available.manual drain,semi-auto drain and automatic drain.
5. The bracket can be selected or installation.

Specification

Model	GF200-06	GF200-08	GF300-08	GF300-10	GF300-15	GF400-10	GF400-15	GF600-20	GF600-25
Fluid	Air
Port size	1/8"	1/4"		3/8"	1/2"	3/8"	1/2"	3/4"	1"
Filtering grade	40 μ m or 5 μ m
Pressure range	Semi~auto and automatic drain:0.15~0.9Mpa(20-130Psi); Manual drain:0.05~0.9Mpa(7-130Psi)
Proof pressure	1.5Mpa(215Psi)
Temperature range	-5~70℃
Capacity of drain bowl	10CC		40CC			80CC		230CC
Weight	135g		360g			680g		1440g

*PT thread,NPT thread and G thread are available
