Product Name:
ADN Series Compact Cylinder (ISO 15552)
No. :
ADN Series
Product Description

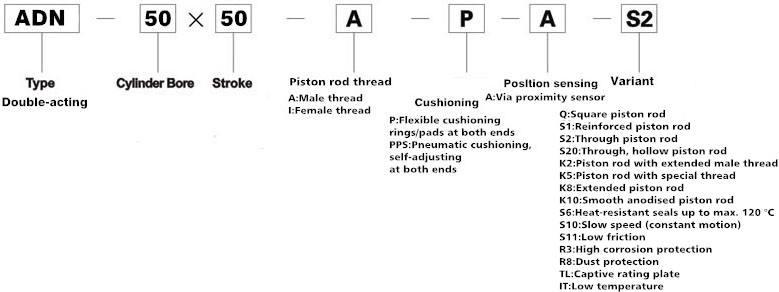

How to Order?
Features
1.High cycle rates possible
2.Ideal for OEMs:no risk tampering
3.Up to 50% shorter than the standard cylinder ISO 15552 – with the same stroke
4.1:1 interchangeable with ADN-P
Specification
|
Bore Size [mm] |
12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 |
|
Stroke length [mm] |
1 ... 500 |
|
Force [N] |
51 ... 7,363 |
|
Double-acting |
|
|
Position sensing |
|
|
Fixed/self-adjusting Cushioning |
|
|
Female thread |
|
|
Male thread |
|

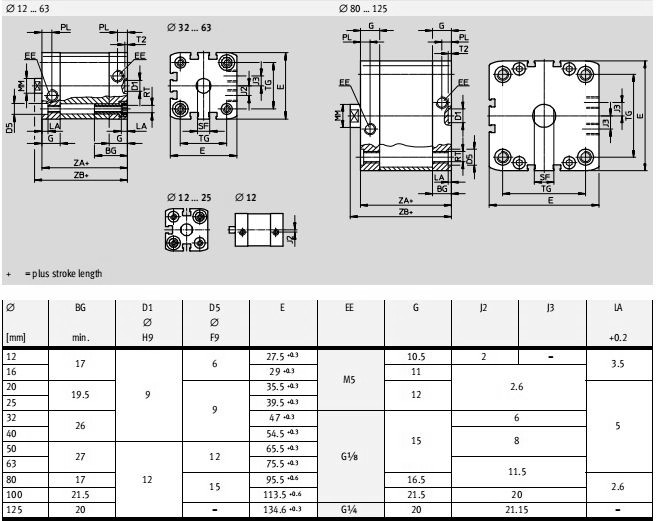

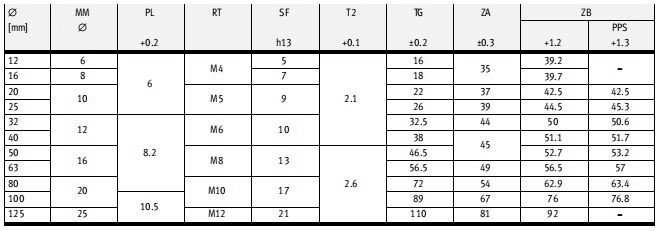

Dimension
