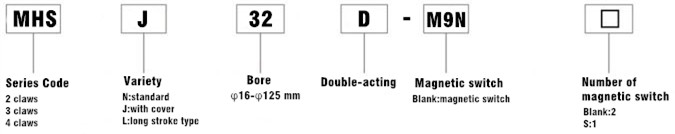

How to Order?

Features
1. Lightweight,compact design with reduced height
2. High repeatability: ±0.01 mm.
3. Auto switch capable
4. Easy alignment when mounting
5. Can be mounted from two directions
6. Employs wedge cam construction
7. Smaller auto switch mountable

Specification

MHS2

Model		MHS2-16D	MHS2-20D	MHS2-25D	MHS2-32D	MHS2-40D	MHS2-50D	MHS2-63D
Bore Size(mm)		16	20	25	32	40	50	63
Fluid		Air
Operating pressure (MPa		0.2 to 0.6			0.1 to 0.6
Ambient and fluid temperature (°C)		–10 to 60
Repeatability (mm)		±0.01
Max. operating frequency (c.p.m.)		120			60
Lubrication		Not required
Action		Double acting
Effective gripping force (N) at 0.5 MPa *	External grip	21	37	63	111	177	280	502
	Internal grip	23	42	71	123	195	306	537
Opening/Closing stroke (mm)		4	4	6	8	8	12	16
Weight (g)		58	96	134	265	345	515	952

*Values for ø16 to ø25 are with gripping point L = 20 mm, and for ø32 to ø63 with gripping point L = 30 mm. Refer to “Effective Gripping Force”

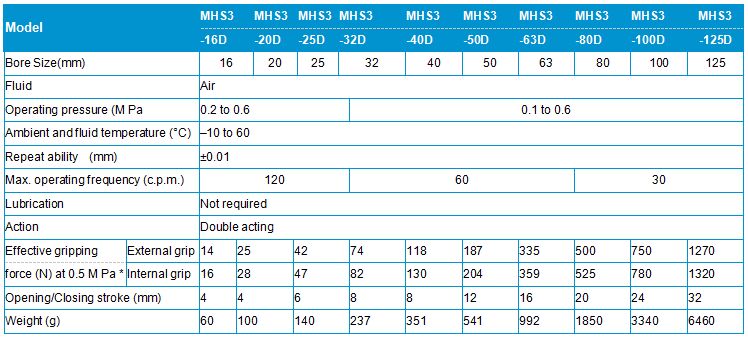

MHS3

*Values for ø16 to ø25 are with gripping point L = 20 mm, for ø32 to ø63 with gripping point L = 30 mm, and for ø80 to ø125 with gripping point L = 50 mm.

MHS4

Model		MHS4-16D	MHS4-20D	MHS4-25D	MHS4-32D	MHS4-40D	MHS4-50D	MHS4-63D
Bore Size(mm)		16	20	25	32	40	50	63
Fluid		Air
Operating pressure (MPa		0.2 to 0.6			0.1 to 0.6
Ambient and fluid temperature (°C)		–10 to 60
Repeatability (mm)		±0.01
Max. operating frequency (c.p.m.)		120			60
Lubrication		Not required
Action		Double acting
Effective gripping force (N) at 0.5 MPa *	External grip	10	19	31	55	88	140	251
	Internal grip	12	21	35	61	97	153	268
Opening/Closing stroke (mm)		4	4	6	8	8	12	16
Weight (g)		66	110	154	300	390	590	1095

*Values for ø16 to ø25 are with gripping point L = 20 mm, for ø32 to ø63 with gripping point L = 30 mm

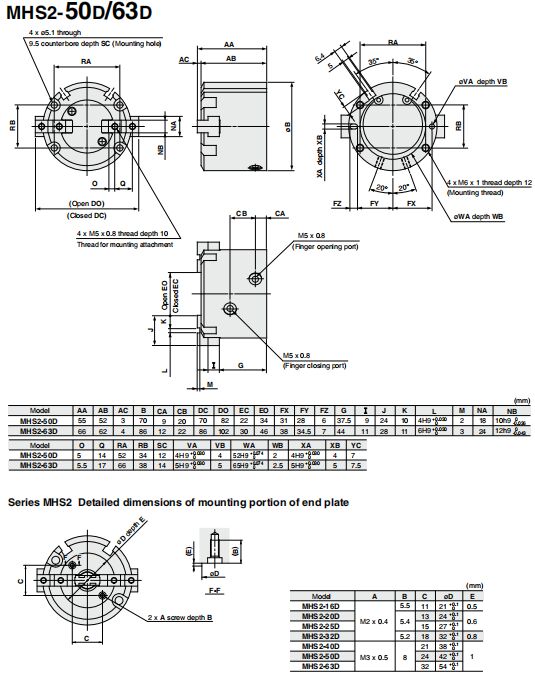

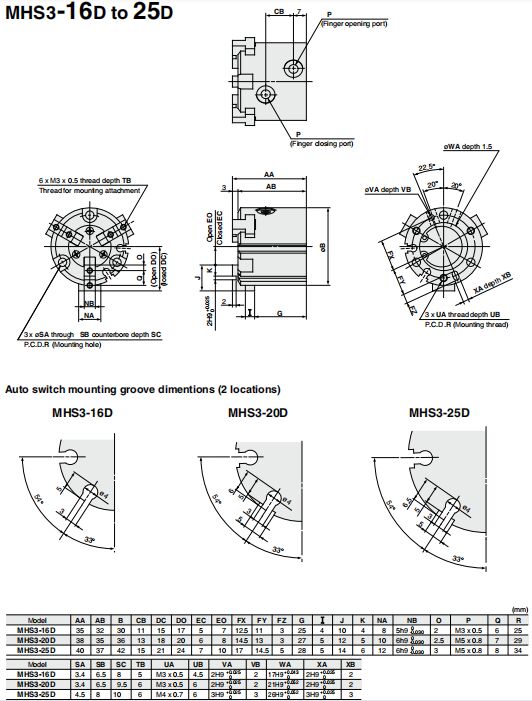

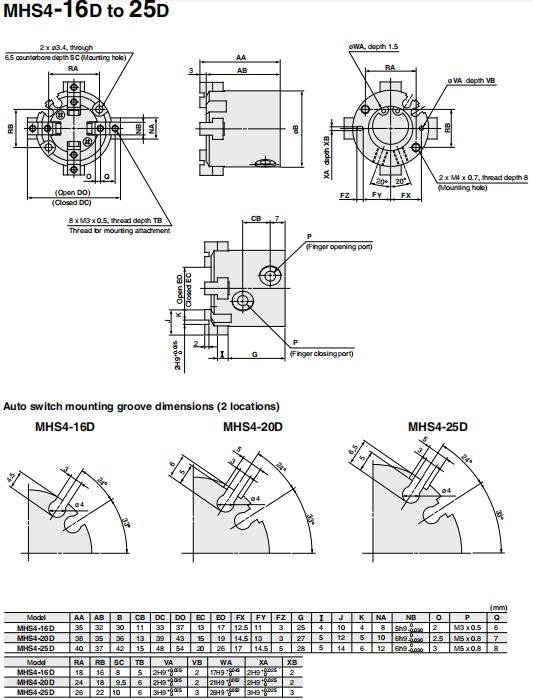

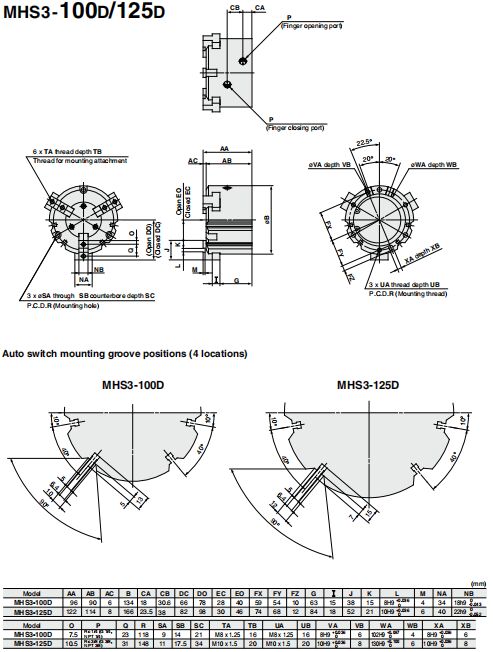

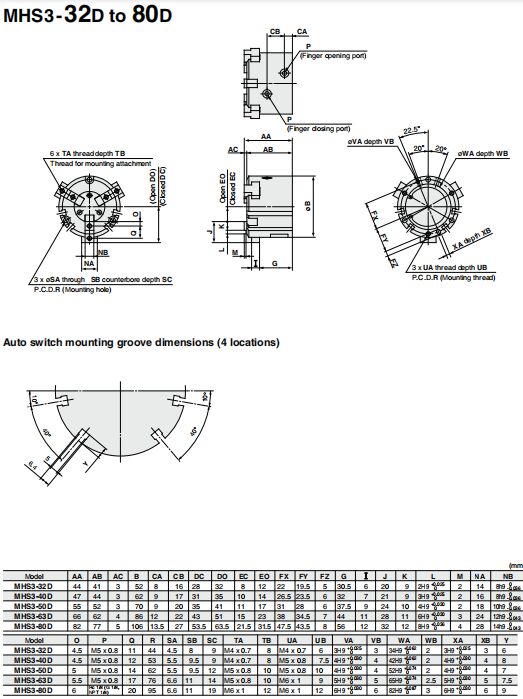

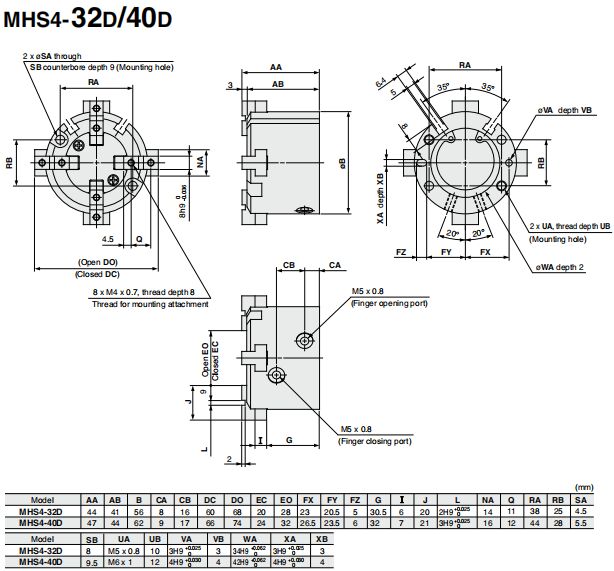

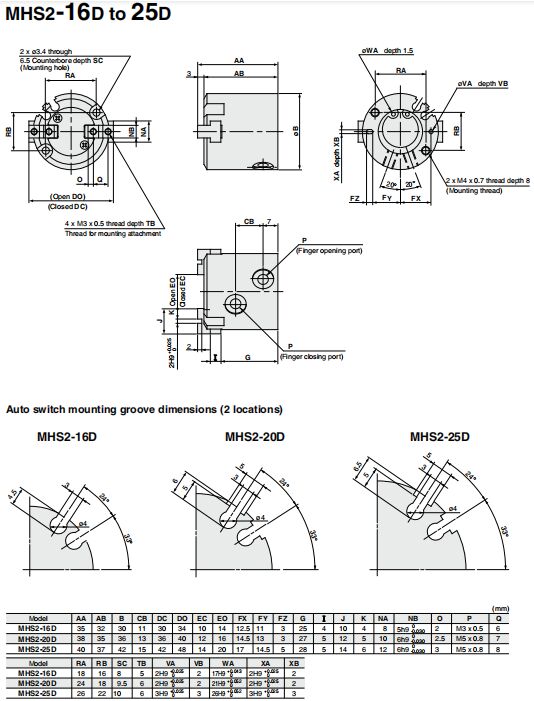

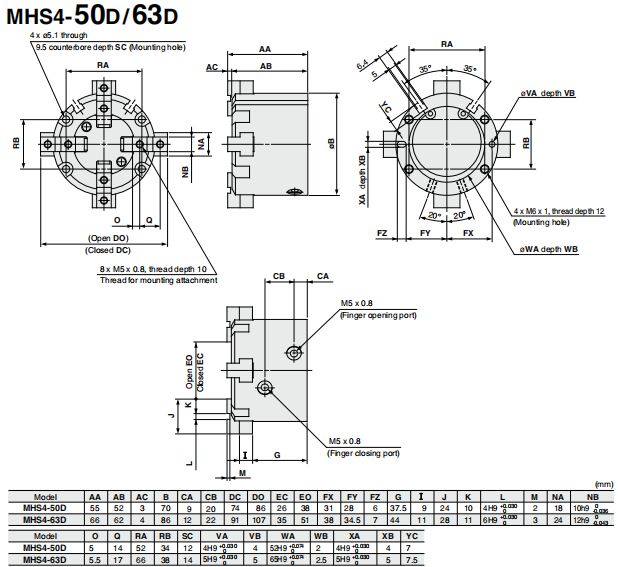

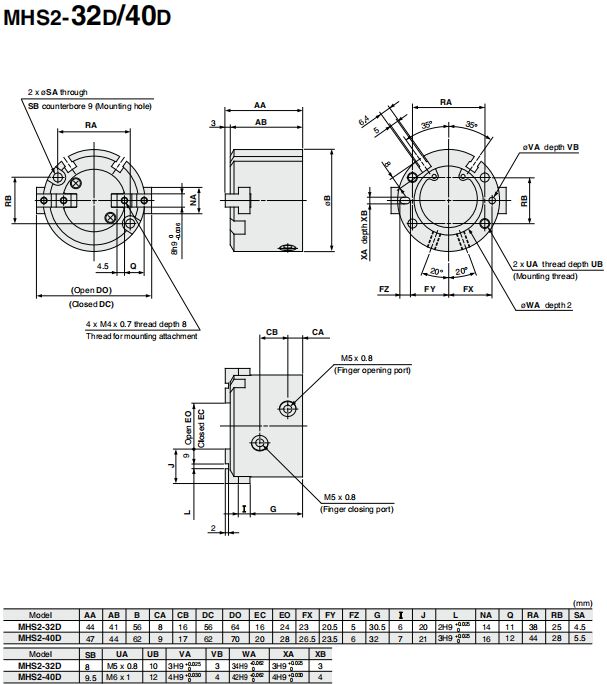

Dimension
