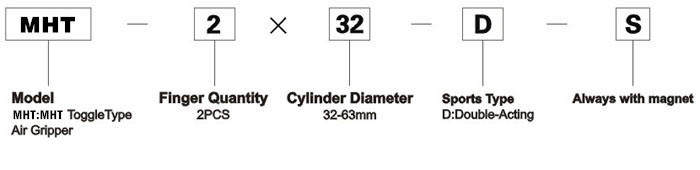

Model

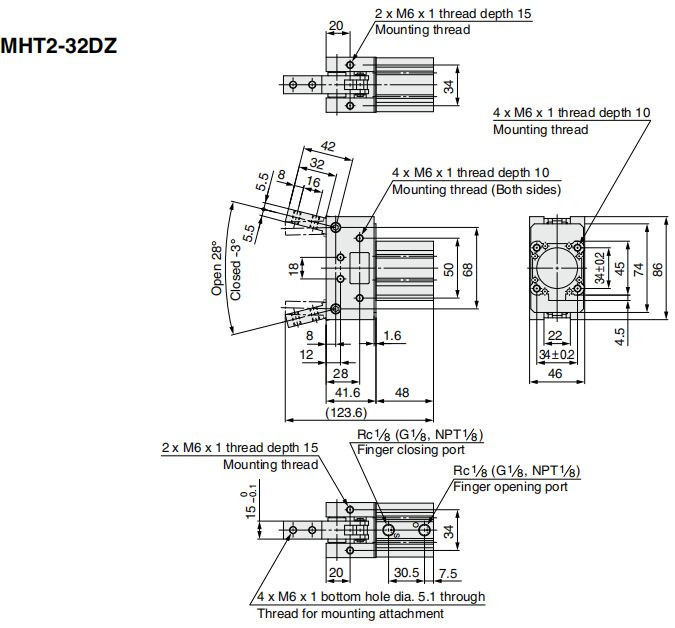

MHT2-32D

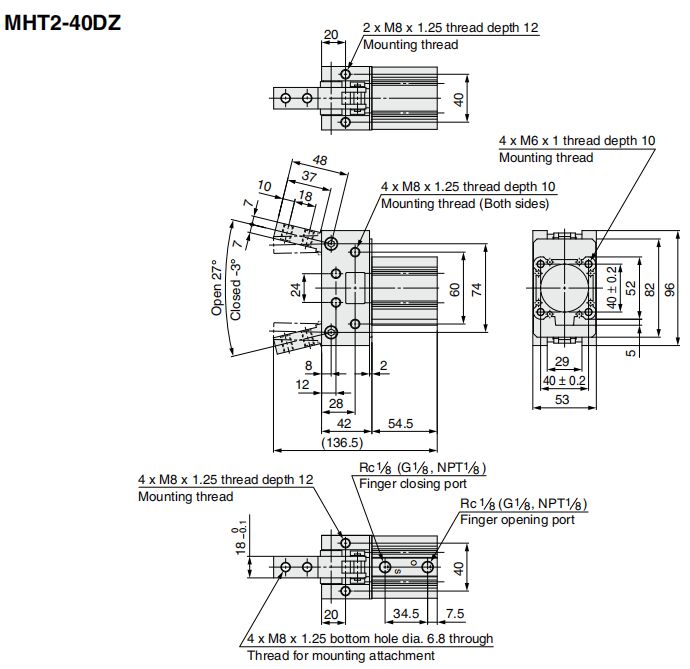

MHT2-40D

MHT2-50D

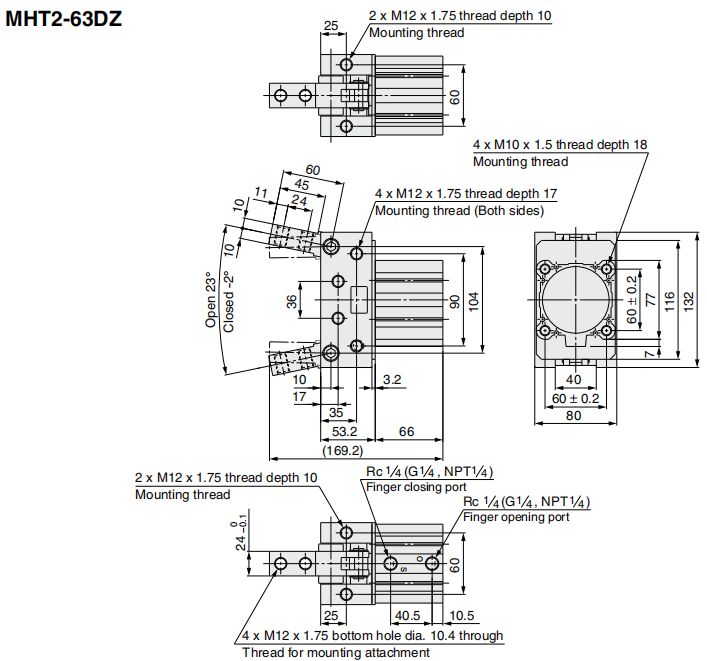

MHT2-63D

Bore size

32

40

50

63

Motion Pattern

Double acting

Fluid

Air

Operating Voltage Range

0.1~0.6 MPa

Ambient and fluid temperature

5~60℃

Lubrication

Not required

Finger opening angle (Total)

-3°~28°

-3°~27°

-2°~23°

-2°~23°

Weight (kg)

0.8

1.09

1.93

2.8

(N●m)/Mffective gripping force (N●m) at 0.5 Mpa

12.4

36

63

106
