Product Name:
AL/BL series Lubricator
No. :
AL/BL series
Product Description

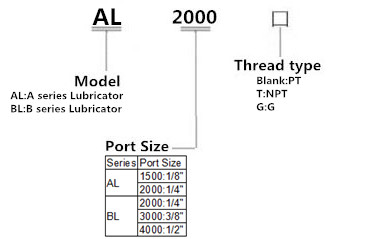

How to Order?
Features
1.The structure is delicate and compact.
2.The quantity of oil dripping can be directly observed through transparent inspection sheet.
3.BL has high-strength plastic shields, which is more safe and reliable to use.
4.The pressure loss and the flow of miststart is low.
Specification
| Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure range | 0.05~0.9Mpa(7-130Psi) | ||||
| Proof pressure | 1.5Mpa(215Psi) | ||||
| Temperature range | -5~70℃ | ||||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommended | ISO VG 32 or equivalent | ||||
| Weight | 170g | 250g | |||
