Product Name:

Mk Series rotary clamp cylinder

No. :

Mk Series

Product Description

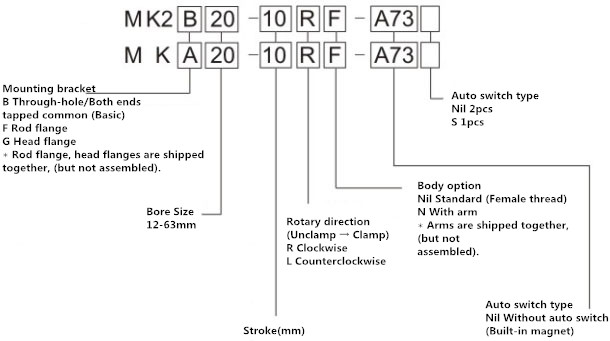

How to Order?

Features

1. Allowable moment of inertia 3 times higher
2. Maintenance can be performed for all sizes
3. Overall length is shortened.
4. Magnetic field resistant auto switch can be used.
5. Clamping rotary direction can be selected from 2 types.
6. Possible to mount small auto switches on 4 surfaces.

Specification

Bore Size(mm)	12	16	20	25	32	40	50	63
Action	Double acting
Rotary angle*	90° ±10°
Rotary direction**	Clockwise, Counterclockwise
Rotary stroke (mm)	7.5		9.5		15		19
Clamp stroke (mm)	10,20,30				10,20,30,50
Theoretical clamp force (N)***	70	75	100	185	300	525	825	1400
Fluid	Air
Proof pressure	1.5MPa
Operating pressure range (MPa)	0.1 to 1							****
								0.1 to0.6
Ambient and fluid temperature	Without auto switch: –10 to 70°C (No freezing)
	With auto switch: –10 to 60°C (No freezing)
Lubrication	Non-lube
Piping port size	M5 x 0.8				Rc1/8,NPT1/8,G1/8		Rc1/4,NPT1/4,G1/4
Mounting	Through-hole/Both ends tapped common, Head flange
Cushion	Rubber bumper
Stroke length tolerance	+0.6
	–0.4
Piston speed*****	50 to 200 mm/s
Non-rotating accuracy (Clamp part) *	±1.4°	±1.2°			±0.9°		±0.7°

*Refer to Rotary Angle figure.
**Direction of rotation viewed from the rod end when the piston rod is retracting
***Clamp force at 0.5 MPa
****When using the cylinder within a pressure range from 0.61 to 1 MPa, please use –X2071.
*****Be sure to install a speed controller to the cylinder, and adjust the cylinder speed to make it within the range from 50 to 200 mm/s.
To adjust the speed, start with the needle in the completely closed position, and then adjust it by opening gradually.

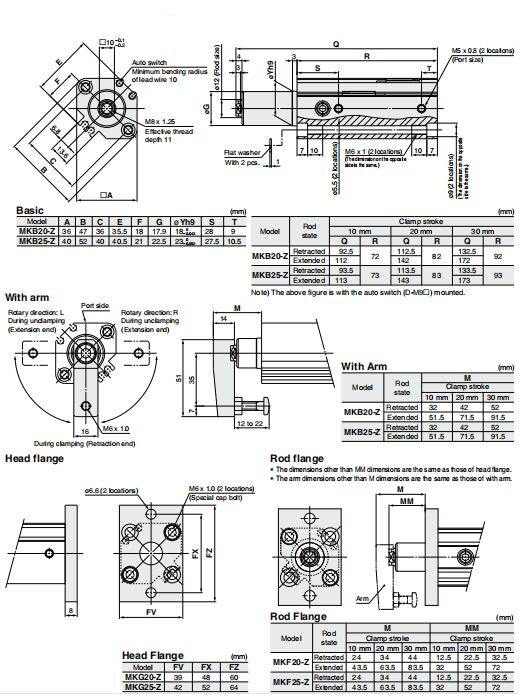

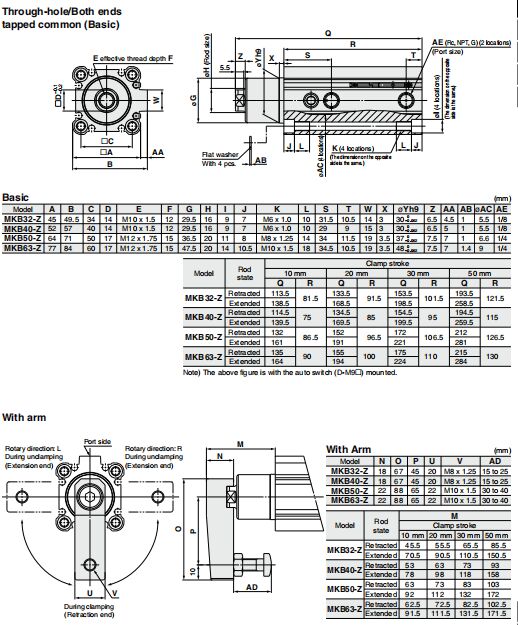

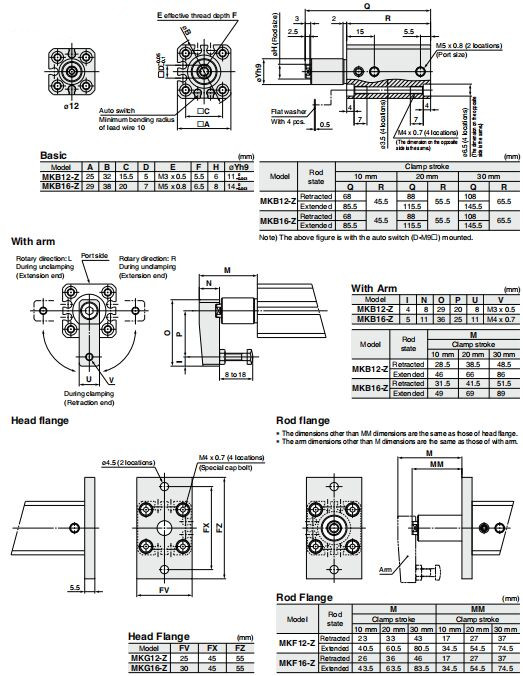

Dimension
