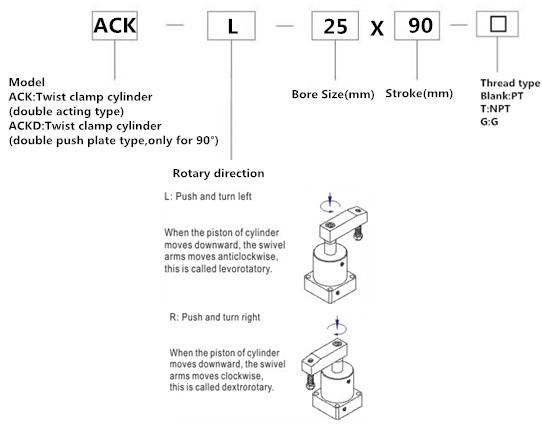

How to Order?

Features

1. The material of seals guarantees the reliable performance of the cylinder that is used under various conditions
2. Three-slot guide structure leads to high guide precision
3. There are single and double side clamping fingers can be selected(90°)
4. Levorotatory and dextrorotary and available,90° and 180°
5. The material of piston rod is made from special alloy steel, which has longer life after heat treatment

Specification

Bore Size(mm)	25	32	40	50	63
Acting Type	Double acting
Fluid	Air(to be filtered by 40μ m filter element)
Operating pressure	0.15-1.0 MPa(22-145psi)
Proof pressure	1.5MPa(215psi)
Temperature ℃	-20-80
Speed range mm/s	50-200
Stroke tolerance	+1.0
	0
Rotary abgle tolerance	±1.5°
Cushion Type ①	No cushion
Port Size ②	M5X0.8	1/8"

① If there is no buffering device,exhaust throttle shall be added to achieve buffering effect
② PT thread, NPT and G thread are available


Dimesnion
