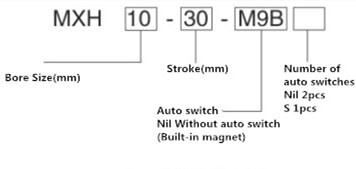

How to Order?

Features

MXH
1. Allowable moment improved by up to 240%
2.  With new high rigidity linear guide
3.  Weight reduced 19%

Specification

MXH

Bore Size	6	10	16	20
Fluid	Air
Action	Double acting
Piping port size	M5X0.8
Minimum operating pressure	0.15MPa	0.06MPa		0.05MPa
Maximum operating pressure	0.7MPa
Proof pressure	1.05MPa
Ambient and fluid temperature	Without auto switch: −10 to 70°C(No freezing)
	With auto switch: −10 to 60°C(No freezing)
Piston speed	50 to 500 mm/s
Allowable kinetic energy (J)	0.0125	0.025	0.05	0.1
Lubrication	Non-lube
Cushion	Rubber bumper on both ends
Stroke length tolerance	+1 mm
	0
Auto switch (Option)	Solid state auto switch D-M9口, M9口W
	Reed auto switch D-A9口

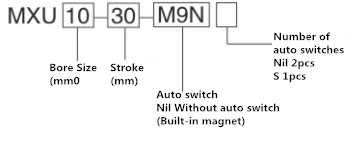

MXU

Dimension
