RSQ Series stopper cylinder
Product Description

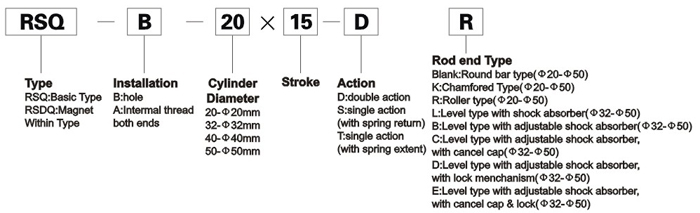

How to Order?

Specification
| Bore(mm) | 12 | 16 | 20 | 32 | 40 | 50 |
| Motion Pattern | Double acting,Double acting with spring loaded, | |||||
| Single acting(Spring extend) | ||||||
| Fluid | Air | |||||
| Ensured Pressure Resistance | 1.5Mpa(15.3kgf/cm2) | |||||
| Max.pressure | 1.0Mpa(10.2kgf/cm2) | |||||
| Ambient and fluid temperature | -10~+70℃:(Without auto switch:No freezing)+60℃ | |||||
| Buffering | (Rubber bumper) | |||||
| Tolerance of stroke | +1.4 (mm) | |||||
| *Lubrication | Not required | |||||
| Mounting | Through-hole,Both ends tapped common | |||||
| Port size | M5×0.8 | RC(PT1/8) | ||||
Dimension
