TWQ Series Stopper Cylinder

Deutsch

Espanol

Portugues

Russian

Product Name:

TWQ Series Stopper Cylinder

No. :

TWQ Series

Product Description

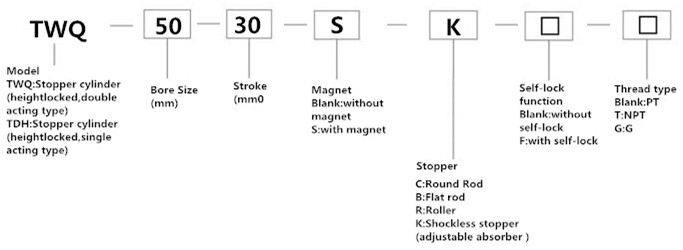

How to Order?

Features

1. JIS standard is implemented

2. Widening the piston rod can effectively improve the impact resistance ability of the cylinder

3. The installation height is adjustable and several rod end modes can be selected.
The stopper cylinder with shock absorber has a better cushion effect

4. Shockless stopper cylinder is equipped with self-lock device,
which can prevent the returning of rebound of rocker caused by bar objects

5. Several series and specifications for stopper cylinders can be selected

Specification

Bore Size(mm)		20	25	32	40	50
Fluid		Air(to be filtered by 40μ m filter element)
Action		Double acting type, single acting-pull type
Operating	Double acting type	0.15-1.0MPa(23-145psi)
pressure	Single acting type	φ20:0.25-1.0MPa(35-145psi), Others:0.2-1.0MPa(28-145psi)
Proof pressure		1.5MPa(215psi)
Temperature ℃		-20-80
Stroke tolerance		+1.0
		0
Cushion Type		Bumper
Lubrication		Non required
Mounting type		Thru hole or screw hole
Stopper type		Round rod,flat/rod/roller		Round rod,flat/rod/roller,
				shock less stopper(with absorber)
Port Size ①		M5X0.8		1/8"

① PT thread, NPT and G thread are available

Dimension
