Product Name:

CUJ Series Free Installation Cylinder

No. :

CUJ Series

Product Description

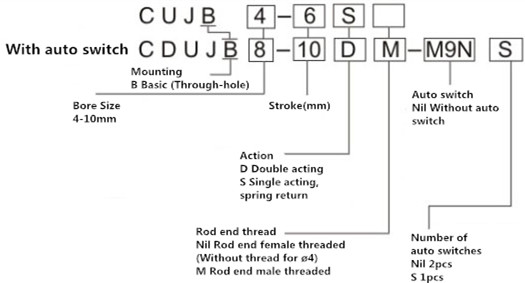

How to Order?

Features

1.Full length is shortened by up to approx. 20%.
2.Volume is reduced by up to approx. 70%.
(Compared with the CU series cylinders, double acting, without magnet)

Specification

Bore Size(mm)		4	6	8	10
Action		Double acting; Single acting, spring return
Fluid		Air
Proof pressure		1.05MPa
Minimum operating	Double acting	0.15 MPa			0.1 MPa
pressure	Single acting,	0.35 MPa	0.3 MPa		0.2 MPa
	spring return
Maximum operating pressure		0.7 MPa
Ambient and fluid temperature		Without auto switch: –10 to 70°C (No freezing)
		With auto switch: –10 to 60°C (No freezing)
Cushion		None
Lubrication		Non-lube
Piston speed		50 to 500 mm/s
Stroke length tolerance		+0.5
		0
Mounting		Through-hole

Dimesnion
