MD Series Free Installation cylinder

Portugues

Russian

Product Name:

MD Series Free Installation cylinder

No. :

MD Series

Product Description

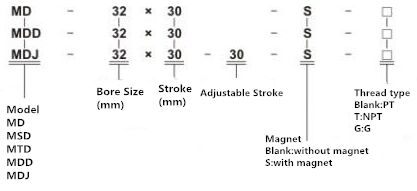

How to Order?

Features

1. Manufactured by our enterprise

2. There are several ways to fix the cylinder and it is convenient to install and use

3. Several cylinders can be assembled together to effectively save the installation space

4. The guide precision of piston rod is high and no additional lubricant is needed

5. Cylinders of various specifications are optional

6. The seal material with high temperature resistance is adopted to guarantee the normal operation
of cylinder at 150℃ (option)

Specification

Bore Size(mm)		6	10	16	20	25
Acting	MD,MDD,MDJ	Double acting
Type	MSD,MTD	Single acting-Push type,Single acting-Pull type
Fluid		Air(to be filter by 40μ m filter element)
Operating	Double acting	0.1-1.0MPa(14-145psi)
pressure	Single acting	0.2-1.0MPa(28-145psi)
Proof pressure		1.5MPa(215psi)
Temperature ℃		-20-80
Speed range mm/s		Double acting:30-500, Single acting :50-500
Stroke tolerance		+1.0
		0
Cushion Type		Bumper
Port Size ①		M5X0.8				1/8"

① PT thread,NPT thread and G thread are available

Dimension
