Features

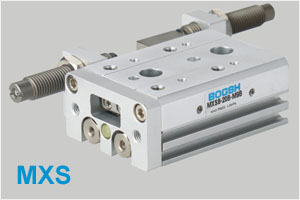

MXQ
1.Integration of the guide rail and the table.Uses a recirculating linear guide for high rigidity and high precision.
Air slide table for precision assembly processes.
2. High precision, compact design
3. Improved load resistance



Specification

MXQ

Bore Size(mm)	6	8	12	16	20	25
Piping port size	M5 x 0.8				Rc1/8,NPT1/8,G1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	–10 to 60°C
Piston speed	50 to 500 mm/s
	(Adjuster option/Metal stopper: 50 to 200 mm/s)
Cushion	Rubber bumper (Standard, Adjuster option/Rubber stopper)
	Shock absorber (Adjuster option/Shock absorber)
	None (Adjuster option/Metal stopper)
Lubrication	Non-lube
Auto switch	Reed auto switch (2-wire, 3-wire)
	Solid state auto switch (2-wire, 3-wire)
	2-color indication solid state auto switch (2-wire, 3-wire)
Stroke length tolerance	+1 mm
	0
