Features

1.Air slide table is suited for precision assembly.
2.Symmetric Type: Port location and stroke adjuster position are in opposite places from the standard body.
3. Improved workpiece mounting repeatability
4. Flush mountable auto switches
5. Dual piston rod

Specification

Bore Size(mm)	6	8	12	16	20	25
Piping port size	M3 x 0.8	M5 x 0.8			Rc1/8,NPT1/8,G1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	–10 to 60°C
Piston speed	50 to 500 mm/s
Cushion	Rubber bumper (Standard, with stroke Adjuster)
	Shock absorber (optional)
Lubrication	Non-lube
Auto switch	Reed auto switch (2-wire, 3-wire)
	Solid state auto switch (2-wire, 3-wire)
	2-color indication solid state auto switch (2-wire, 3-wire)
Stroke length tolerance	+1 mm
	0

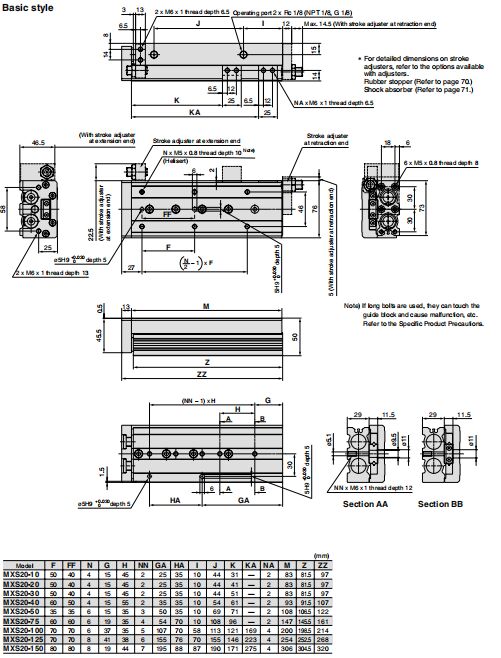

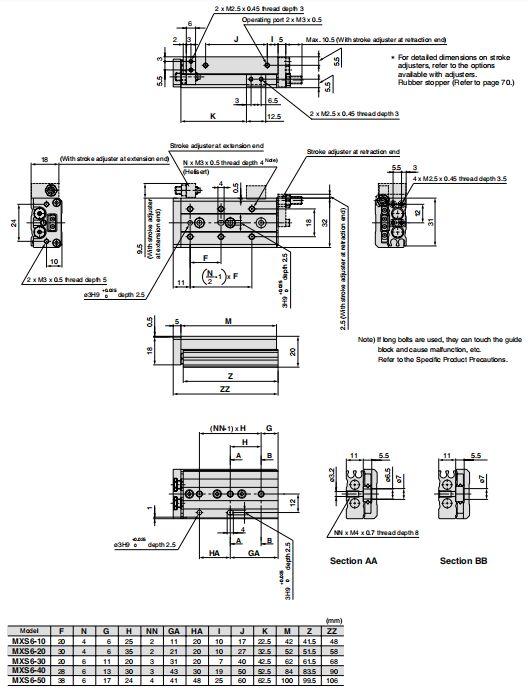

Dimension
