Product Name:

CXSW Series double-rod cylinder

No. :

CXSW Series

Product Description

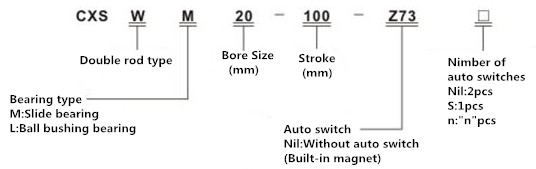

How to Order?

Features

1. The max. permissible load 2 to 3 times larger than CXS series

2. The structure of double-piston rod provides the good performance of anti-bending and
anti-torsion and can bear relatively stronger movement radial and load.

Specification

Bore Size	6	10	15	20	25	32
Fluid	Air (Non-lube)
Proof pressure	1.05 MPa
Maximum operating pressure	0.7 MPa
Minimum operating pressure	0.15 MPa			0.1 MPa
Ambient and fluid temperature	–10 to 60°C (No freezing)
Piston speed	50 to 500 mm/s
Cushion	Bumper is standard on both ends
Stroke adjustable range	0 to –10 mm compared to the standard stroke
	(Extended end: 5 mm, Retracted end: 5 mm)
Port size	M5 x 0.8				Rc 1/8
Bearing type	Slide bearing, Ball bushing bearing (Same dimensions for both)
