Product Name:
DPZ Series Twin-piston cylinder
No. :
DPZ Series
Product Description

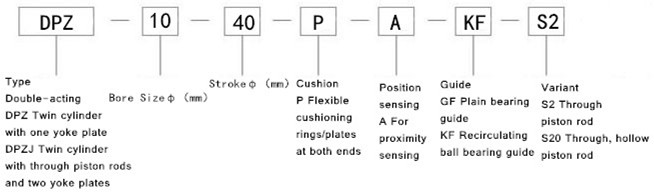

How to Order?
Specification
| Bore size (mm) | 10 | 16 | 20 | 25 | 32 |
| Operating medium | Compressed air | ||||
| Operating pressure | 2.5 … 10 | 1 … 10 | |||
| Constructional | Parallel piston rods with yoke | ||||
| design | Through parallel piston rods with yoke | ||||
| Cushioning | Flexible cushioning rings/plates at both ends | ||||
| Position sensing | For proximity sensing | ||||
| Type of mounting | Via through-holes | ||||
| With female thread | |||||
| With mounting plate | |||||
| Port Size | M5 | G1/8 | |||

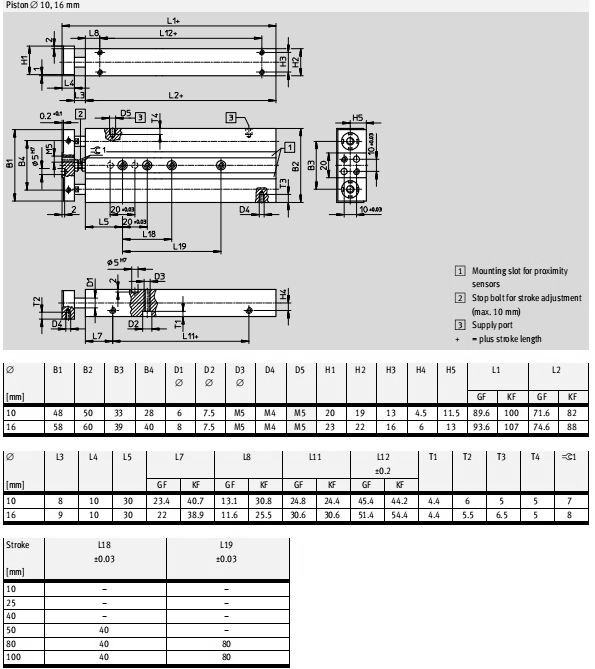

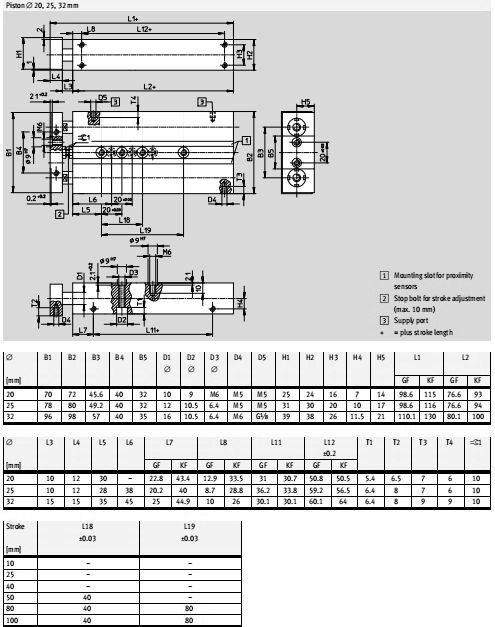

Dimension
