How to Order?
Features
1.Enterprises standard is implemented.
2.Embeded installation and fixation mode saves the installation space.
3.It is good resistance to bending and twisting moments.
4. Mounting holes on three sides facilitates multi-position mounting.
5.Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
6.Standard configuration of this series has magnet and the type without magnet is not available.
Specification
|
Bore(mm) |
10 |
16 |
20 |
25 |
32 |
|
Motion Pattern |
Double action |
||||
|
Working Medium |
Air |
||||
|
Operating Voltage Range |
1~9kgf/cm2 |
||||
|
Ensured Pressure Resistance |
10.5kgf/cm2 |
||||
|
Operating Temperature Range |
-5~+70℃ |
||||
|
Operating Speed Range |
100~500mm/s |
||||
|
Adjustable Stroke |
-10~0mm |
||||
|
Cushion Type |
Adjustable Cushion |
||||
|
Non-rotating Precision |
0.4℃ |
0.3℃ |
|||
|
Port Size |
M5×0.8 |
G1/8" |
|||

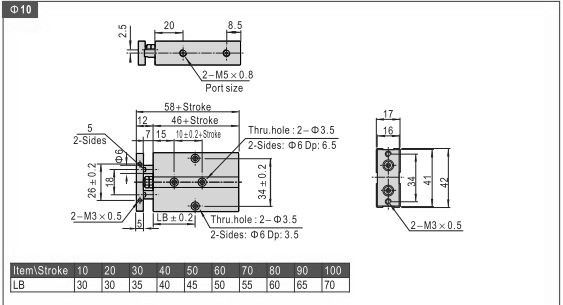

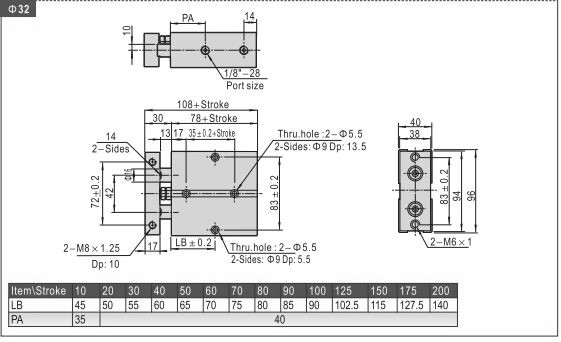

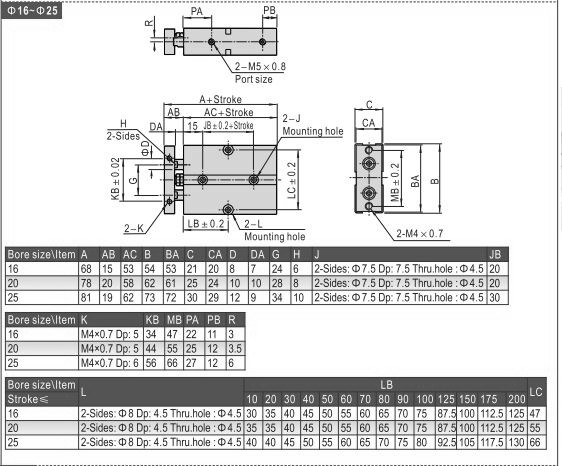

Dimension
BOGSH Pneumatic
|
|
|
|
