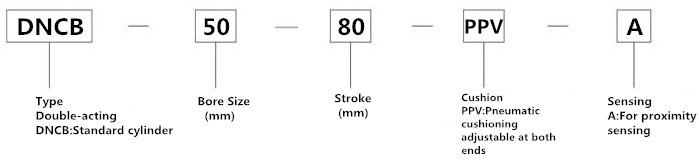

How to Order?



Features

1. Standards-based cylinders to ISO 15552 (corresponds to the withdrawn standards ISO 6431,
DIN ISO 6431, VDMA 24 562, NF E 49 003.1 and UNI 10290)

2. The modern design and construction saves up to 11% on space compared to ordinary
standard cylinders, thus permitting a considerably more compact system design

3. Proven technology, compact, solid and reliable

4. Excellent running characteristics thanks to efficient piston system

5. Simple and sensitive adjustable end-position cushioning thanks to new PPV adjusting screw

6. When an ideal setting has been found, the imprinted scale ensures easy reproducibility

7. The proximity sensors fit flush in the profile slot. On the one hand, this does away with the need
for additional mounting kits and on the other, it protects the proximity sensor against mechanical damage

8. Large selection of mounting options

9. All accessories and mounting attachments from the DNC range can be used

Specification
