Product Name:

CS1 Series Standard Air Cylinder

No. :

CS1 series

Product Description

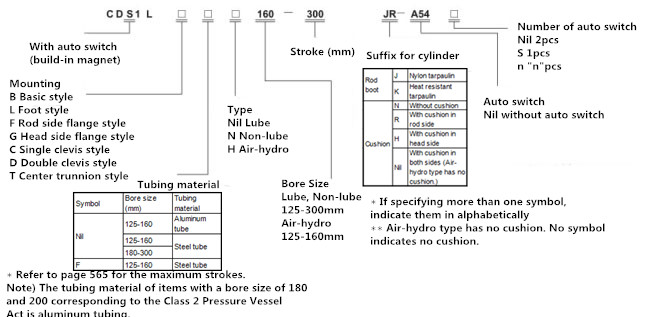

How to Order?

Specification

Bore Size(mm)	ø125 to ø300	ø125, ø140, ø160
Type	Lube, Non-lube	Air-hydro
Fluid	Air	Turbine oil
Proof pressure	1.57 MPa
Maximum operating pressure	0.97 MPa
Minimum operating pressure	0.05 MPa	0.06 MPa
Piston speed	50 to 500 mm/s	0.5 to 200 mm/s
Cushion	Interchangeable	None
Ambient and fluid temperature	0 to 70℃ (No freezing)	5 to 60 ℃
Stroke length tolerance (mm)	~250:+1.0 ,251~1000:+1.4,1001~1500:+1.8
Stroke length tolerance (mm)	0 0 0
Mounting	Basic style, Foot style, Rod side flange style,
	Head side flange style, Single clevis style,
	Double clevis style, Center trunnion style

Note) Item corresponding to Class 2 Pressure Vessel Act is 1.46 MPa

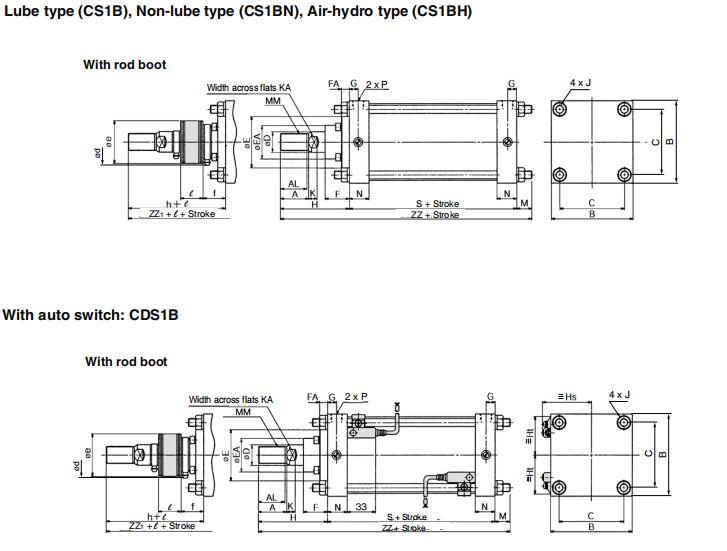

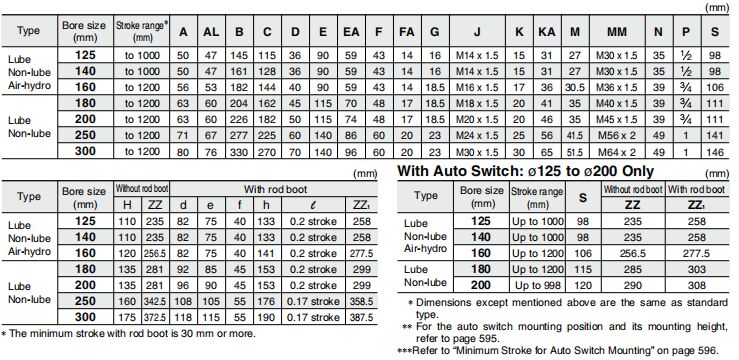

Dimension
