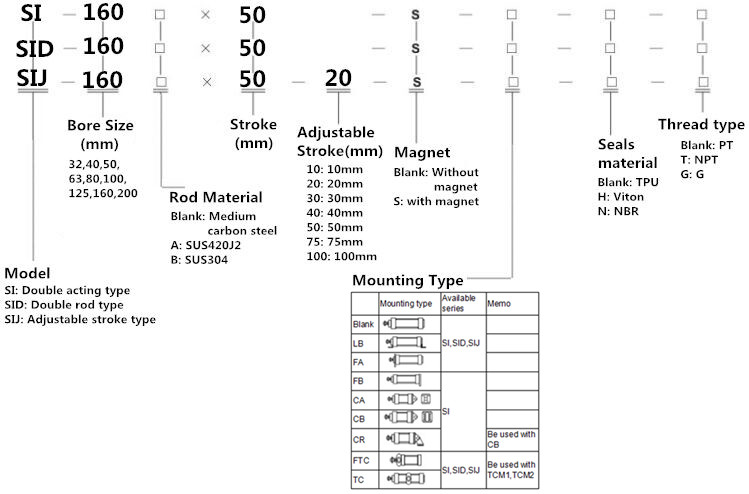

How to Order?
Features
1. ISO15552 (original ISO6431) standard cylinder;
2. The piston seal is composed of two Y-shape one-way seal structure,
which has compensation function, long service life and low start-up pressure;
3. The 米-shaped aluminum pipe without tie rod has good corrosion esistance;
4. The buffer adjustment of cylinder is smooth and steady;
5. Cylinders and accessories for installation with several specifications are optional
Specification
|
Bore(mm) |
32,40,50,63,80,100,125,160,200,250,320 |
|||||
|
Motion Pattern |
Double Action |
|||||
|
Working Medium |
Air |
|||||
|
Fixed Type |
Normal type FA/Type FB/Type CA/Type CB/Type SDB/Type LB/Type TC/Type |
|||||
|
Working Pressure Range |
0.1~0.9MPa |
|||||
|
Ensured Pressure Resistance |
1.35MPa |
|||||
|
Operating Temperature Range |
-5~70℃ |
|||||
|
Operating Speed Range |
50~800mm/s |
|||||
|
Buffer Type |
Adjustable Buffer |
|||||
|
Buffer Stroke |
24 |
32 |
42 |
33 |
|
|
|
Port Size |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
G1" |
Dimension
|
|
|
|
