Product Name:
MB Series Standard Air Cylinder
No. :
MB Series
Product Description

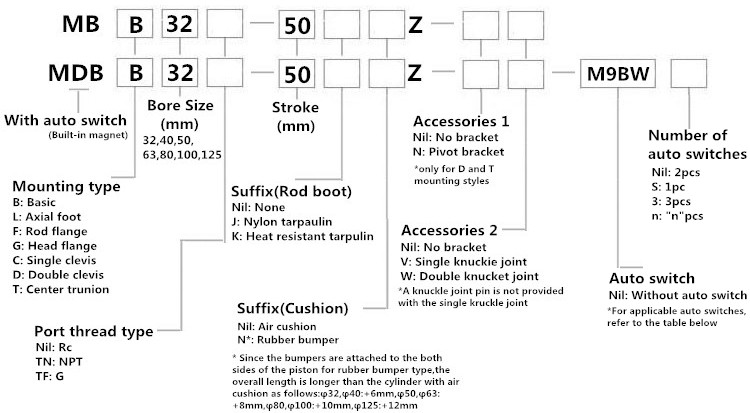

How to Order?
Features
1. Weight 10% lighter. Reduced weight by changing the shape of the rod cover and head cover.
2. Mounting dimensions are the same as the current product.
Specification
|
Bore Size(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
|
Working Medium |
Air |
|||||
|
Action type |
Double acting |
|||||
|
Proof pressure |
15.3kgf/cm2(1.5Mpa) |
|||||
|
Max.pressure |
10.2kgf/cm2(1.0Mpa) |
|||||
|
Min.pressure |
0.5kgf/cm2(0.05Mpa) |
|||||
|
Environment and fluid temp |
-10~+60℃ |
|||||
|
Piston veocity |
50~1000mm/s |
|||||
|
Buffering |
Air buffering |
|||||
|
Stroke tolerance |
~0~250+10 , 251~1000+14 , 1001~1500+18 |
|||||
|
Rc(PT)Joint size |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
||
Dimension
