CP95/C95 series standard cylinder (ISO15552)

Portugues

Russian

Product Name:

CP95/C95 series standard cylinder (ISO15552)

No. :

CP95/C95 series (ISO15552)

Product Description

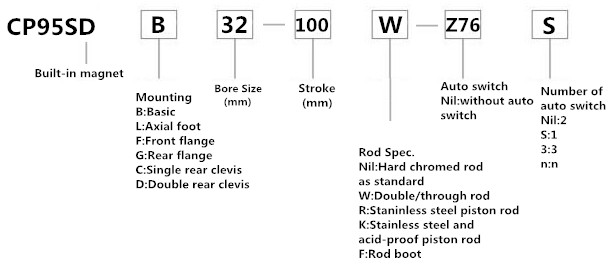

How to Order?

Specification

Bore size (mm)	32	40	50	63	80	100
Action	Double acting
Fluid	Air
Proof pressure	1.5MPa
Max. operating pressure	1.0MPa
Min. operating pressure	0.05MPa
Ambient and fluid temperature	Without auto switch: –10 to 70°C (No freezing)
	With auto switch : –10 to 60°C (No freezing)
Lubrication	Not required (Non-lube)
Operating piston speed (mm/s)	50 to 1000
Allowable stroke tolerance	to 250: +1.0 , 251 to 1000: +1.4
	0 0
Cushion	Both ehds(Air Cushion)
Port size	G 1/8	G 1/4		G 3/8		G 1/2
Mounting	Basic, Axial foot,front flange,rear flange,spherical
	bearing,single rear clevis,double Basic, Axial foot
