Product Name:

CA2 Series Standard Air Cylinder

No. :

CA2 Series

Product Description

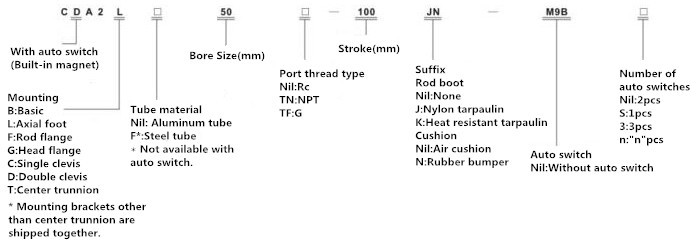

How to Order?

Features

1. Weight reduced by up to 15% lighter

2. Easy air cushion control.
Number of cushion valve adjustment rotations increased from 1 rotation to 3 rotations

3.Piston rod lurching reduced

4.Mounting dimensions are the same as the existing product.

Specification

Bore(mm)	40	50	63	80	100
Working Medium	Air
Motion Pattern	Double action Type
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Min.pressure	0.5kgf/cm2(0.05Mpa)
Operating Temperature Range	5~+60℃
Operating Speed Range	50~500mm/s
Buffering	Air buffering
Margin of Stroke Error(mm)	~0~250+10 251~1000+1.4 1001~1500+1.8
Port size	G1/4"	G3/8"	G3/8"	G1/2"	G1/2"

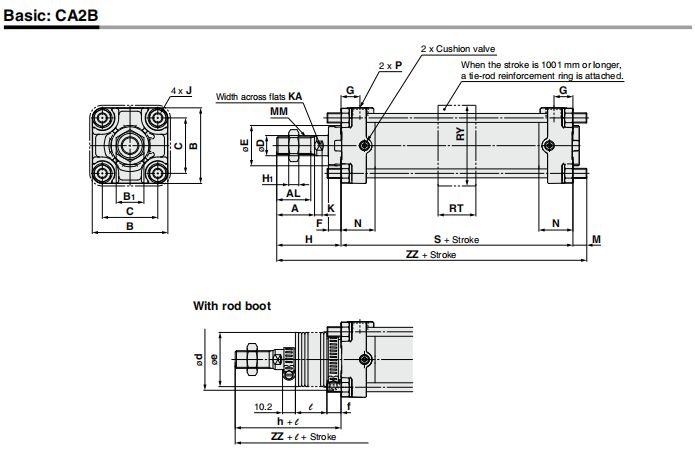

Dimension
