CP96/C96 Series standard cylinder (ISO15552)

Portugues

Russian

Product Name:

CP96/C96 Series standard cylinder (ISO15552)

No. :

CP96/C96 Series (ISO15552)

Product Description

How to Order?

Specification

Bore size (mm)	32	40	50	63	80	100	125
Action	Double acting
Fluid	Air
Proof pressure	1.5MPa
Max. operating pressure	1.0MPa
Min. operating pressure	0.05MPa
Ambient and fluid temperature	Without auto switch: –20 to 70°C (No freezing) With auto switch : –10 to 60°C (No freezing)
Lubrication	Not required (Non-lube)
Operating piston speed (mm/s)	50 to 1000						50 to 700
Cushion	Air Cushion
Port size	G 1/8	G 1/4		G 3/8		G 1/2
Mounting	Basic, Axial foot, Rod flange,Head flange, Single clevis, Double clevis,Center trunnion

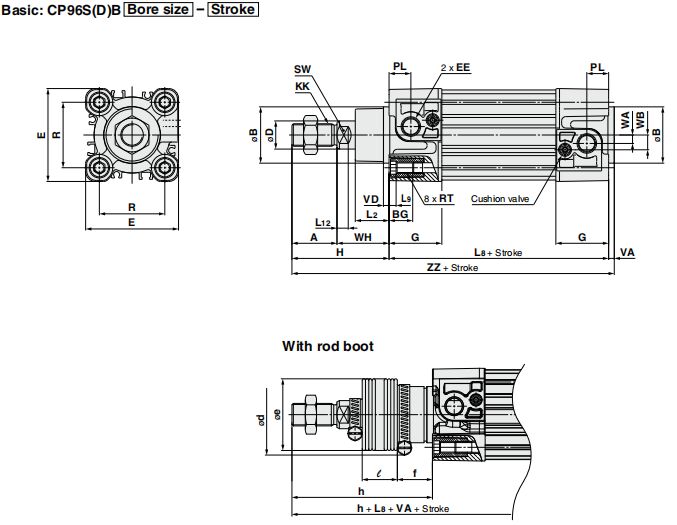

Dimension
