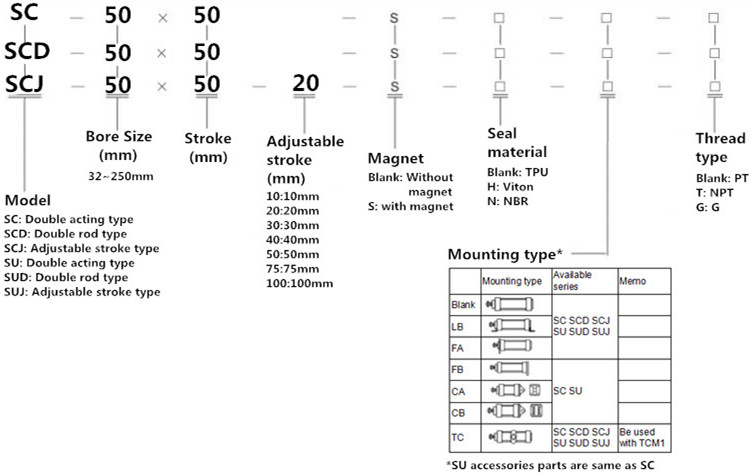

How to Order?

Features

SC

1. Standard cylinder manufactured by our enterprise.

2. The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the

    function of grease reservation.

3. It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.

4. Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.

5. The buffer adjustment of cylinder is smooth and steady.

6. Cylinders and mounting accessories with several specifications are optional.

7. The seal material with high temperature resistance is adopted to guarantee the normal operation of

    cylinder at 150℃.

SU

1. Standard cylinder manufactured by our enterprise.

2.The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the

   function of oil reservation.

3. It is no tie rod cylinder. The cylinder barrel is “Mickey Mouse” shape, and have good corrosion.

4. Compared with ISO15552 standard cylinder, SU series cylinder with the same bore size is shorter.

5.The buffer adjustment of cylinder is smooth and steady.

6. Mounting accessories are the same as SC series.

7. The seal material with high temperature resistance is adopted to guarantee the normal operation of

    cylinder at 150℃.

Specification

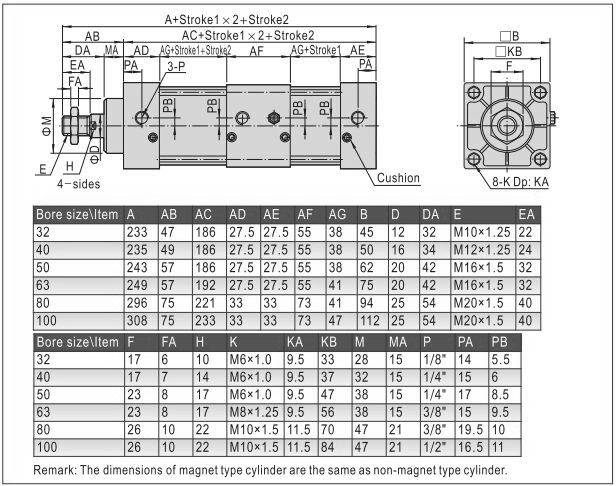

Dimension
