Product Name:
FEN/FENG Series guide units (to ISO standard)
No. :
FEN/FENG Series
Product Description
How to Order?
Features
1. The guide units FEN and FENG protect standard cylinders from torsion
when these are subjected to high torque loads
2. They offer high precision guidance for workpiece handling and other handling applications
3. Two guide variants are available: Plain-bearing guide (GF) and Recirculating ball bearing guide (KF)

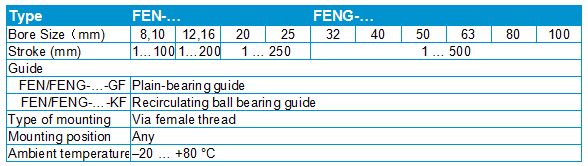

Specification

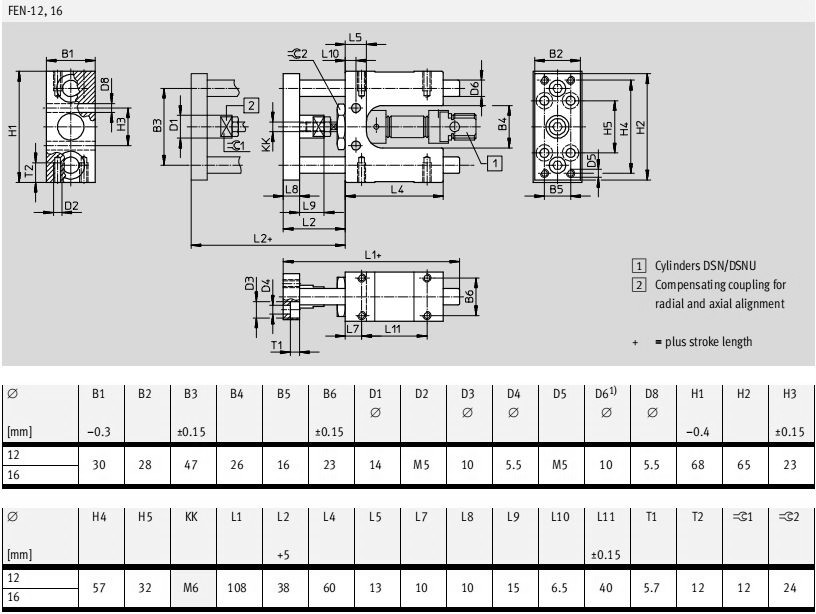

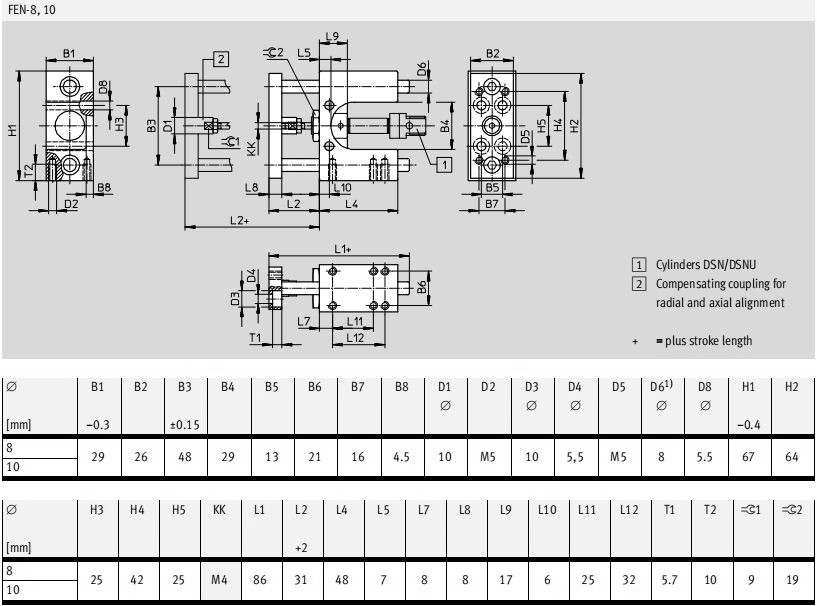

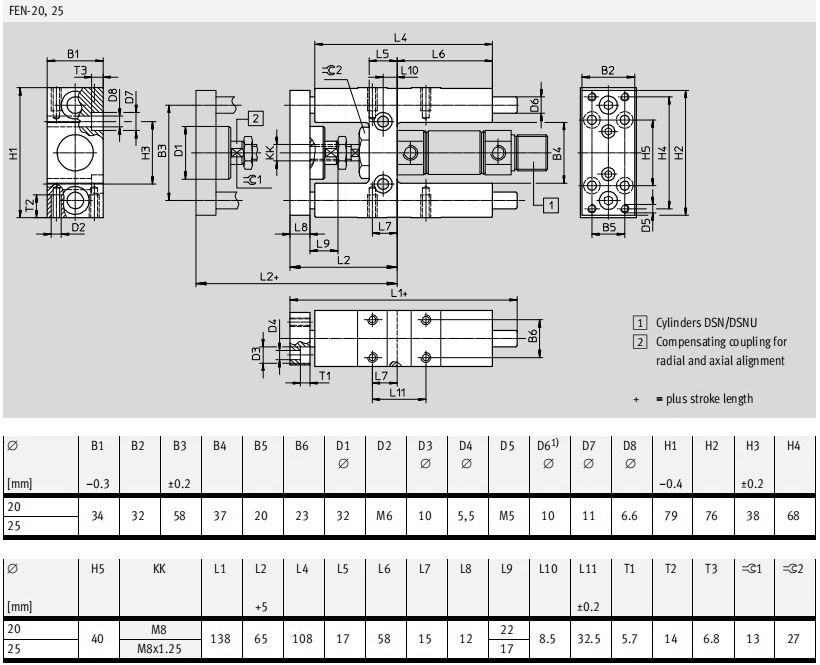

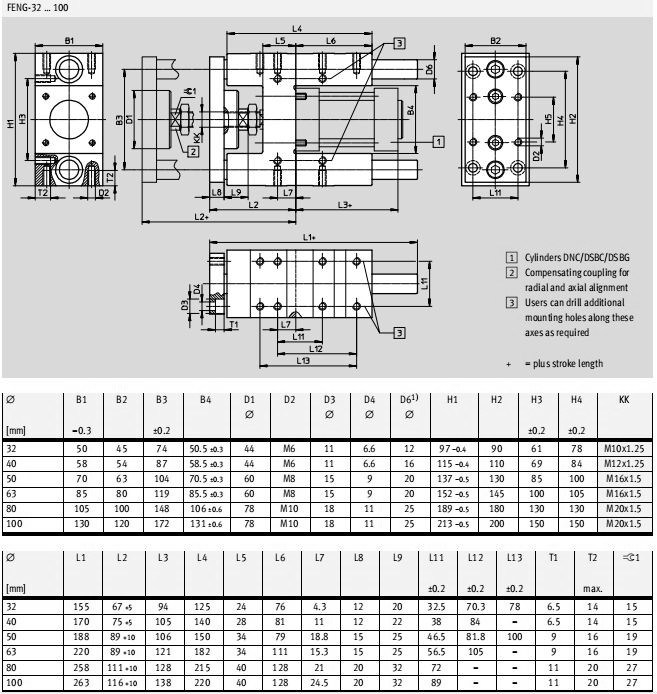

Dimension
BOGSH Pneumatic
