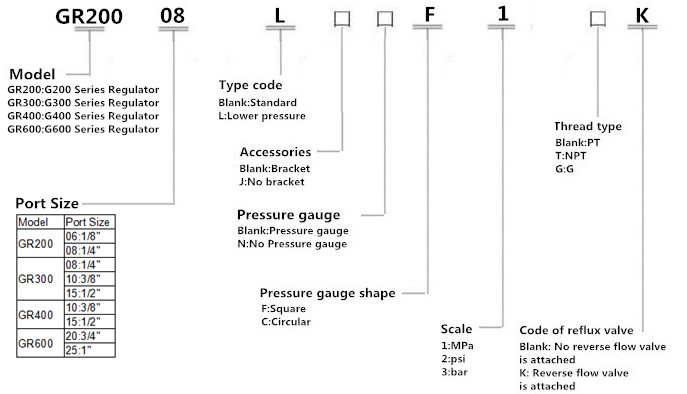

How to Order?

Features

1. Embedded square pressure gauge is used to save installation space.
   (External circular pressure gauge is also optional).
2.The pressed-in self-locking mechanism can prevent the abnormal movement
   of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. In addition to panel installation, the bracket is optional for installation.
5.In addition to standard type, lower pressure type is optional
   (The highest adjustable pressure is 0.4MPa)

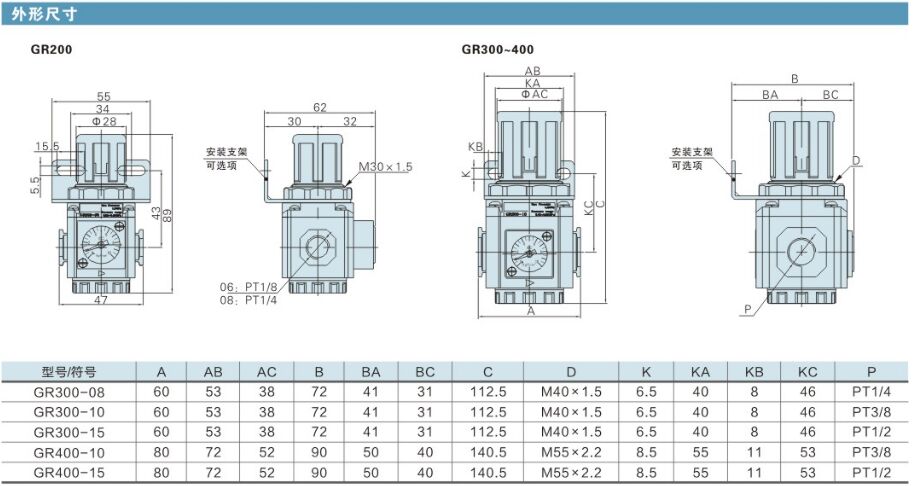

Specification
