Product Name:
PB Series One touch fittings
No. :
PB Series
Product Description
How to Order?

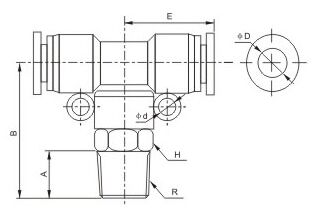

| Model | φD | R | A | B | E | H2 | φd |
| PB4-M5 | 4 | M5 | 4.5 | 25.4 | 18.6 | 10 | |
| PB4-01 | 4 | R1/8 | 7 | 25.4 | 18.6 | 10 | |
| PB4-02 | 4 | R1/4 | 9 | 27.8 | 18.6 | 14 | |
| PB6-M5 | 6 | M5 | 4.5 | 26.8 | 20.8 | 12 | 3.5 |
| PB6-01 | 6 | R1/8 | 6.5 | 37.6 | 20.8 | 12 | 3.5 |
| PB6-02 | 6 | R1/4 | 9 | 30 | 20.8 | 14 | 3.5 |
| PB6-03 | 6 | R3/8 | 10 | 30.6 | 20.8 | 17 | 3.5 |
| PB6-04 | 6 | R1/2 | 10 | 32.5 | 20.8 | 21 | 3.5 |
| PB8-01 | 8 | R1/8 | 8 | 31.5 | 22.9 | 14 | 4.5 |
| PB8-02 | 8 | R1/4 | 10 | 33 | 22.9 | 14 | 4.5 |
| PB8-03 | 8 | R3/8 | 10 | 33.6 | 22.9 | 17 | 4.5 |
| PB8-04 | 8 | R1/2 | 11 | 35 | 22.9 | 21 | 4.5 |
| PB10-01 | 10 | R1/8 | 8 | 37 | 27.8 | 17 | 4 |
| PB10-02 | 10 | R1/4 | 10 | 38 | 27.8 | 17 | 4 |
| PB10-03 | 10 | R3/8 | 10 | 38 | 27.8 | 17 | 4.5 |
| PB10-04 | 10 | R1/2 | 11 | 39 | 27.8 | 21 | 4.5 |
| PB12-01 | 12 | R1/4 | 8 | 37.5 | 29.5 | 19 | 5 |
| PB12-02 | 12 | R1/4 | 10 | 40 | 29.5 | 19 | 5 |
| PB12-03 | 12 | R3/8 | 10 | 40 | 29.5 | 19 | 5 |
| PB12-04 | 12 | R1/2 | 11 | 41 | 29.5 | 21 | 5 |
| PB14-03 | 16 | R3/8 | 11 | 46.3 | 34.5 | 24 | 4 |
| PB14-04 | 16 | R1/2 | 12 | 47.3 | 34.5 | 27 | 4 |
